Pistons

Pistons

Product Image
Photograph for illustrative purposes only - not actual product shown

CEP P H 12587/040-1 - Piston Set

From £50.50 (£60.60 inc. VAT @ 20%)

1 cyl piston 12587 for Austin - 8.3h.p. 803cc O.H.V. A30/Seven, CR 7.2 to 1

Comparable to other manufacturer part numbers - CEP P H 12587

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
57.912 65.0875 33.3375 2.28 2 9/16 1 5/16
WishlistDetails & Ordering
Product Image
Photograph for illustrative purposes only - not actual product shown

CEP P H 15765/040-4 - Piston Set

From £286.76 (£344.11 inc. VAT @ 20%)

TR4 (86mm std bore) +.040

Comparable to other manufacturer part numbers - CEP P H 15765

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
85.98916 87.3125 50.8 22.225 3.3854 3 7/16 2 7/8
Year From:
1961
Year To:
1967
WishlistDetails & Ordering

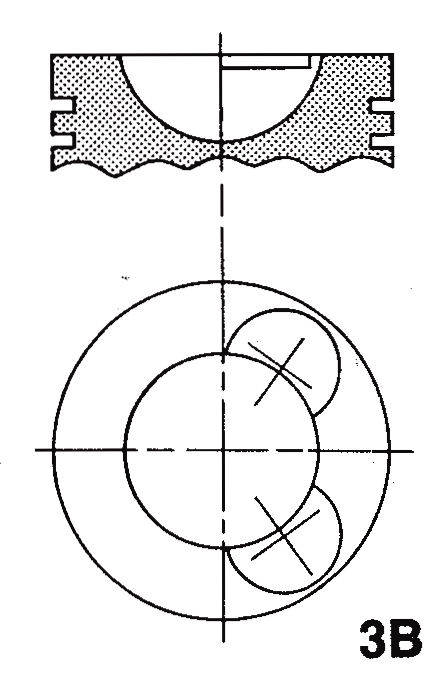

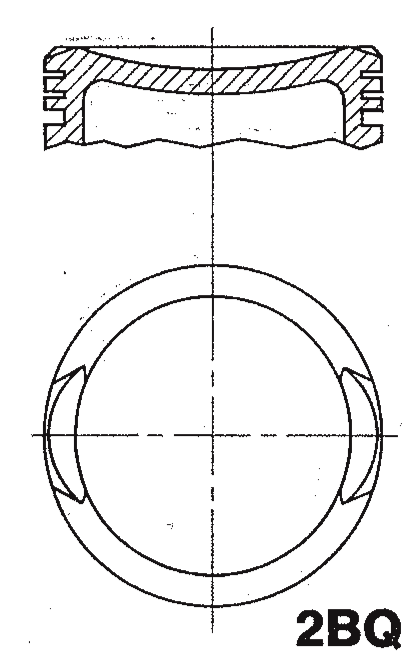

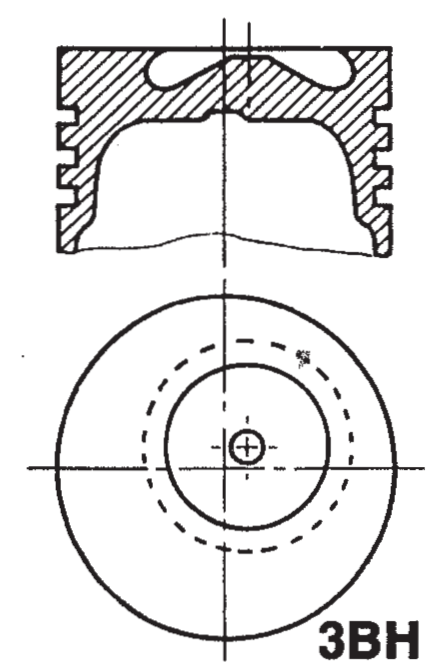

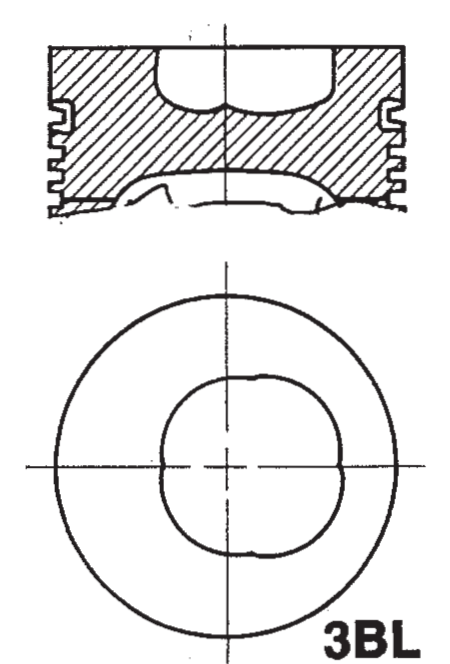

Piston Crown TypePiston Crown Type

CEP P H 7686/060-4 - Piston Set

From £222.20 (£266.64 inc. VAT @ 20%)

Standard 12HP

Comparable to other manufacturer part numbers - CEP P H 7686

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
69.5 78.978125 39.290625 19.05 2.73622 3 7/64 1 35/64 3/4
Year From:
1934
Year To:
1936
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 2727/060-6 - Piston Set - 6 cylinder for Gardner.

From £515.10 (£618.12 inc. VAT @ 20%)

6 cyl piston set 2727 for Gardner - 36.5h.p. 70/90cwt 6JO ring below pin. Also Gilford

Comparable to other manufacturer part numbers - CEP P H 2727

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
98.425 111.125 60.325 28.575 3 7/8 4 3/8 2 3/8 1 1/8
Year From:
1932
Year To:
1936
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 4674/060-4 - Piston Set - 4 cylinder for Ford.

From £222.20 (£266.64 inc. VAT @ 20%)

4 cyl piston set 4674 for Ford - 10h.p.(Short) 1172cc SV Deluxe, C.E. Prefect,

Comparable to other manufacturer part numbers - CEP P H 4674

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
63.5 65.0875 26.19375 17.4625 2 1/2 2 9/16 1 1/32 11/16
Year From:
1935
Year To:
1939
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 5639/030-4 - Piston Set - 4 cylinder for Singer.

From £222.20 (£266.64 inc. VAT @ 20%)

4 cyl piston set 5639 for Singer - 11h.p. 1459cc Eleven

Comparable to other manufacturer part numbers - CEP P H 5639

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
66.5 71.4375 38.1 15.875 2.61811 2 13/16 1 1/2 5/8
Year From:
1935
Year To:
1936
WishlistDetails & Ordering
Product Image
Photograph for illustrative purposes only - not actual product shown

CEP P H 7393/040-6 - Piston Set - 6 cylinder for Morris.

From £333.30 (£399.96 inc. VAT @ 20%)

6 cyl piston set 7393 for Morris - 25h.p. Overseas C.R 5.75 to 1, C.I

Comparable to other manufacturer part numbers - CEP P H 7393

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
82 99 55 22 3.228346 3.897638 2.165354 0.866142
Piston Crown Type:
Dome
Year From:
1933
Year To:
1937
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 7668/030-1 - Piston Set - 1 cylinder for Rover.

From £50.50 (£60.60 inc. VAT @ 20%)

1 cyl piston set 7668 for Rover - 11.9h.p. 1496cc Twelve

Comparable to other manufacturer part numbers - CEP P H 7668

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
69 78.184375 40.084375 15.875 2.716535 3 5/64 1 37/64 5/8
Year From:
1934
Year To:
1947
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 7695/STD-4 - Piston Set - 4 cylinder for Hillman.

From £222.20 (£266.64 inc. VAT @ 20%)

4 cyl piston set 7695 for Hillman - 9.8h.p. 1185cc Minx, Minx Magnificent, Aero Minx

Comparable to other manufacturer part numbers - CEP P H 7695

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
63 76.99375 38.89375 16 2.480315 3 1/32 1 17/32 0.629921
Year From:
1932
Year To:
1947
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 7771/030-4 - Piston Set - 4 cylinder for Standard.

From £222.20 (£266.64 inc. VAT @ 20%)

4 cyl piston set 7771 for Standard - 9.h.p 1052cc, Little 9, 4 cyl

Comparable to other manufacturer part numbers - CEP P H 7771

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
60.325 69.85 34.925 15.875 2 3/8 2 3/4 1 3/8 5/8
Year From:
1934
Year To:
1936
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 7806/060-6 - Piston Set - 6 cylinder for Vauxhall.

From £333.30 (£399.96 inc. VAT @ 20%)

6 cyl piston set 7806 for Vauxhall - 14h.p. 1781cc Light Six ASX

Comparable to other manufacturer part numbers - CEP P H 7806

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
61.5 75.40625 39.6875 19.05 2.42126 2 31/32 1 9/16 3/4
Year From:
1934
Year To:
1938
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 7900/040-6 - Piston Set - 6 cylinder for Studebaker.

From £333.30 (£399.96 inc. VAT @ 20%)

6 cyl piston set 7900 for Studebaker - 26h.p. Commander Six, 7A, 8A, 9A, 10A, 11A 12A, Coupe Express K5, L5. Heplex version of Piston 10138

Comparable to other manufacturer part numbers - CEP P H 7900

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
84.1375 94.853125 51.990625 22.225 3 5/16 3 47/64 2 3/64 7/8
Year From:
1938
Year To:
1942
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 8109/030-4 - Piston Set - 4 cylinder for Hillman.

From £222.20 (£266.64 inc. VAT @ 20%)

4 cyl piston set 8109 for Hillman - 16h.p. 2576cc Sixteen

Comparable to other manufacturer part numbers - CEP P H 8109

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
67.5 93.5 51 22 2.65748 3.681102 2.007874 0.866142
Year From:
1937
Year To:
1941
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 8481/020-1 - Piston Set - 1 cylinder for Caterpillar.

From £60.60 (£72.72 inc. VAT @ 20%)

1 cyl piston set 8481 for Caterpillar - 2 Cylinder petrol starting engine for Diesel RD6, RD7, RD8 power units, D6100, D6600, D7700, D8800, D11000, D13000

Comparable to other manufacturer part numbers - CEP P H 8481

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
92.075 107.95 61.9125 27.78125 3 5/8 4 1/4 2 7/16 1 3/32
Year From:
1934
Year To:
1942
WishlistDetails & Ordering
Product Image
Photograph for illustrative purposes only - not actual product shown

CEP P H 8713/040-6 - Piston Set - 6 cylinder for Morris.

From £333.30 (£399.96 inc. VAT @ 20%)

6 cyl piston set 8713 for Morris - 25h.p. Overseas C.R 5.75 to 1, Aluminium, 6 cyl

Comparable to other manufacturer part numbers - CEP P H 8713

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
82 102.5 58 22 3.228346 4.035433 2.283465 0.866142
Piston Crown Type:
Dome
Year From:
1933
Year To:
1937
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 8823/060-4 - Piston Set - 4 cylinder for Austin.

From £238.61 (£286.33 inc. VAT @ 20%)

4 cyl piston set 8823 for Austin - 10.98h.p, 1237cc MPU Utility, C.R 6.52 to 1

Comparable to other manufacturer part numbers - CEP P H 8823

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
66.548 69.85 31.75 14.2875 2.62 2 3/4 1 1/4 9/16
Year From:
1940
Year To:
1946
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 8999/030-4 - Piston Set - 4 cylinder for Ford.

From £363.60 (£436.32 inc. VAT @ 20%)

4 cyl piston set 8999 for Ford - 24h.p. A, AA, B, BB C.R. 4.6 to 1. Aluminium version of cast iron piston 8618

Comparable to other manufacturer part numbers - CEP P H 8999

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
98.425 97.63125 48.41875 25.4 3 7/8 3 27/32 1 29/32 1
Year From:
1928
Year To:
1934
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 9211/020-4 - Piston Set - 4 cylinder for Continental.

From £222.20 (£266.64 inc. VAT @ 20%)

4 cyl piston set 9211 for Continental - F4162 Industrial F162, LF162, Power Unit PF162, Kerosene

Comparable to other manufacturer part numbers - 9457

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
87.3125 90.4875 50.8 21.828125 3 7/16 3 9/16 2 55/64
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 9745/030-6 - Piston Set - 6 cylinder for Dodge.

From £333.30 (£399.96 inc. VAT @ 20%)

6 cyl piston set 9745 for Dodge - 27.3h.p. Aluminium version of cast iron piston 5297

Comparable to other manufacturer part numbers - 5297

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
85.725 97.63125 50.8 21.828125 3 3/8 3 27/32 2 55/64
Year From:
1934
Year To:
1941
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 10083/060-6 - Piston Set - 6 cylinder for Chrysler.

From £333.30 (£399.96 inc. VAT @ 20%)

6 cyl piston set 10083 for Chrysler - 28.35h.p. 4100cc, SV, C34, C38, C45, C48, C51, Royal, Windsor, Newport, 5 tonner, US Army

Comparable to other manufacturer part numbers - 8979

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
87.3125 98.425 50.8 21.828125 3 7/16 3 7/8 2 55/64
Year From:
1942
Year To:
1951
WishlistDetails & Ordering
Product Image
Photograph for illustrative purposes only - not actual product shown

CEP P H 10491/030-4 - Piston Set - 4 cylinder for Vauxhall.

From £222.20 (£266.64 inc. VAT @ 20%)

4 cyl piston set 10491 for Vauxhall - 1939/48 12h.p. 1442 cc Twelve Four, I, CR 6.8 to 1. 1948/52 1 1/2 litre, Wyvern LIX, CR 6.4 to 1

Comparable to other manufacturer part numbers - CEP P H 10491

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
69.5 90.884375 55.165625 15.875 2.73622 3 37/64 2 11/64 5/8
Piston Crown Type:
Turbulator
Year From:
1939
Year To:
1952
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 11121/030-4 - Piston Set - 4 cylinder for Reliant.

From £222.20 (£266.64 inc. VAT @ 20%)

4 cyl piston set 11121 for Reliant - 747 cc Regent, Prince Regent, regal, 5-12 Cwt Three Wheeler Van. 598 cc Ohv Regal 3/25, 5 Cwt van, CR 7.8 to 1. Up to Engine 88757

Comparable to other manufacturer part numbers - CEP P H 11121

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
55.88 46.0375 22.225 12.7 2.2 1 13/16 7/8 1/2
Year From:
1948
Year To:
1962
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 11594/030-4 - Piston Set - 4 cylinder for Hillman.

From £222.20 (£266.64 inc. VAT @ 20%)

4 cyl piston set 11594 for Hillman - 1185 cc SV Minx, MkI, MkII, MkIII

Comparable to other manufacturer part numbers - CEP P H 11594

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
63 73.81875 38.89375 16 2.480315 2 29/32 1 17/32 0.629921
Year From:
1932
Year To:
1949
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 12377/040-4 - Piston Set - 4 cylinder for Jaguar.

From £222.20 (£266.64 inc. VAT @ 20%)

4 cyl piston set 12377 for Jaguar - 1609 cc 1.5 Litre

Comparable to other manufacturer part numbers - CEP P H 12377

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
69.5 82 45.5 19.05 2.73622 3.228346 1.791339 3/4
Year From:
1937
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 12545/040-1 - Piston Set - 1 cylinder for Morris.

From £50.50 (£60.60 inc. VAT @ 20%)

1 cyl piston set 12545 for Morris - 14h.p. 1818 cc Morris Series II and III, Fourteen Six, 'Q'

Comparable to other manufacturer part numbers - 7812

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
61.5 70 42.5 18 2.42126 2.755906 1.673228 0.708661
Year From:
1936
Year To:
40
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 12572/030-4 - Piston Set - 4 cylinder for Austin.

From £276.87 (£332.24 inc. VAT @ 20%)

4 cyl piston set 12572 for Austin - 18.9h.p. 2660 cc O.H.V. Atlantic A90/Healey Hundred, 2.7 Lit. CR 7.5 to 1-4 cyl

Comparable to other manufacturer part numbers - CEP P H 12572

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
87.3125 90.4875 50.8 22.225 3 7/16 3 9/16 2 7/8
Year From:
1948
Year To:
1956
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 12756/030-4 - Piston Set - 4 cylinder for Austin.

From £222.20 (£266.64 inc. VAT @ 20%)

4 cyl piston set 12756 for Austin - 23.44h.p. 2639.4cc O.H.V. A90 Westminster 2.6 Lit/ A95 Low Comp. CR 7.3 to 1

Comparable to other manufacturer part numbers - CEP P H 12756

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
79.375 87.3125 47.625 22.225 3 1/8 3 7/16 1 7/8 7/8
Year From:
1955
Year To:
1957
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 12866/060-4 - Piston Set - 4 cylinder for Austin.

From £222.20 (£266.64 inc. VAT @ 20%)

4 cyl piston set 12866 for Austin - 10.65h.p. 1200 cc O.H.V. A40 Cambridge CR 7.2 to 1.

Comparable to other manufacturer part numbers - CEP P H 12866

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
65.4685 76.99375 42.1132 17.4625 2.5775 3 1/32 1.658 11/16
Year From:
1955
Year To:
1957
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 13530/060-4 - Piston Set - 4 cylinder for Vauxhall.

From £222.20 (£266.64 inc. VAT @ 20%)

4 cyl piston set 13530 for Vauxhall - 16.63h.p. 1507 cc OHV 1 1/2 litre, Wyvern, Victor

Comparable to other manufacturer part numbers - CEP P H 13530

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
79.375 79.0448 45.593 19.05 3 1/8 3.112 1.795 3/4
Year From:
1957
Year To:
1958
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 13695/040-4 - Piston Set - 4 cylinder for Continental.

From £222.20 (£266.64 inc. VAT @ 20%)

4 cyl piston set 13695 for Continental - F4140, Industrial F140, LF140, Power Unit PF140. Z120 4cyl

Comparable to other manufacturer part numbers - CEP P H 13695

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
80.9625 90.4875 50.8 21.828125 3 3/16 3 9/16 2 55/64
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 14370/STD-4 - Piston Set - 4 cylinder for Standard.

From £238.61 (£286.33 inc. VAT @ 20%)

4 cyl piston set 14370 for Standard - 1009 cc SV Flying Eight, CR 6.7 to 1

Comparable to other manufacturer part numbers - 9969

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
56.7 73.025 38.1 15.875 2.232283 2 7/8 1 1/2 5/8
Year From:
1945
Year To:
1948
WishlistDetails & Ordering
Product Image
Photograph for illustrative purposes only - not actual product shown

CEP P H 14816/STD-1 - Piston Set - 1 cylinder for Austin.

From £50.50 (£60.60 inc. VAT @ 20%)

1 cyl piston set 14816 for Austin - 2912 cc OHV A99 Westminster/A110 2.9 litre/ 3 litre Princess. CR 8.3 to 1 6 cyl

Comparable to other manufacturer part numbers - 18398

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
83.3247 87.3125 47.625 22.225 3.2805 3 7/16 1 7/8 7/8
Piston Crown Type:
Concave (0.303")
Year From:
1959
Year To:
1970
WishlistDetails & Ordering
Product Image
Photograph for illustrative purposes only - not actual product shown

CEP P H 15642/040-4 - Piston Set - 4 cylinder for Triumph.

From £222.20 (£266.64 inc. VAT @ 20%)

4 cyl piston set 15642 for Triumph - 1147 cc OHV Herald 1200, Herald 12/50, Spitfire, Courier 5 cwt. CR 8 to 1

Comparable to other manufacturer part numbers - 16178

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
69.28866 74.3458 38.4556 20.6375 2.7279 2.927 1.514 13/16
Year From:
22313
Year To:
1965
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 16110/030-4 - Piston Set - 4 cylinder for Fiat.

From £222.20 (£266.64 inc. VAT @ 20%)

4 cyl piston set 16110 for Fiat - 1295 cc OHV 1300 CR 8.8 to 1

Comparable to other manufacturer part numbers - CEP P H 16110

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
72 88.5 45.602 22 2.834646 3.484252 1.795354 0.866142
Year From:
1961
Year To:
1964
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 16205/030-4 - Piston Set - 4 cylinder for Ford.

From £222.20 (£266.64 inc. VAT @ 20%)

4 cyl piston set 16205 for Ford - 997 cc OHV Anglia, Thames 5-7 Cwt, 105E Engine, Perfect 107E Engine, CR 8.9 to 1, Thames 5-7 Cwt 307E Engine CR 7.5 to 1. 1198 cc OHV Anglia Super, Cortina,...

Comparable to other manufacturer part numbers - 18400

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
80.9498 77.1398 38.89375 20.6375 3.187 3.037 1 17/32 13/16
Year From:
1960
Year To:
1968
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 16220/STD-4 - Piston Set - 4 cylinder for Singer.

From £222.20 (£266.64 inc. VAT @ 20%)

4 cyl piston set 16220 for Singer - 1494 cc OHV Gazelle, CR 8.5 to 1

Comparable to other manufacturer part numbers - CEP P H 16220

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
78.999 82.55 46.99 22.225 3.110197 3 1/4 1.85 7/8
Year From:
1960
Year To:
1961
WishlistDetails & Ordering
Product Image
Photograph for illustrative purposes only - not actual product shown

CEP P H 16412 JP/060-4 - Piston Set - 4 cylinder for Rover.

From £534.54 (£641.45 inc. VAT @ 20%)

4 cyl piston set 16412 JP for Rover - 1998 cc 60, 2 Litre, CR 6.9 to 1

Comparable to other manufacturer part numbers - CEP P H 16412 JP

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
77.8 93.2942 61.5442 3.062992 3.673 2.423
WishlistDetails & Ordering
Product Image
Photograph for illustrative purposes only - not actual product shown

CEP P H 16639/STD-6 - Piston Set - 6 cylinder for Vauxhall.

From £515.10 (£618.12 inc. VAT @ 20%)

6 cyl piston set 16639 for Vauxhall - 3293 cc OHV Velox, Cresta, Viscount, CR 8.5 to 1

Comparable to other manufacturer part numbers - CEP P H 16639

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
92.075 77.9272 44.45 21.9964 3 5/8 3.068 1 3/4 0.866
Year From:
1965
Year To:
1966
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 17215/030-4 - Piston Set - 4 cylinder for Vauxhall.

From £222.20 (£266.64 inc. VAT @ 20%)

4 cyl piston set 17215 for Vauxhall - 1159 cc OHV Viva De-Luxe, SL, CR 8.5 to 1 (Low Comp 7.3 to 1). 90 De Luxe, 90 SL, CR 9 to 1

Comparable to other manufacturer part numbers - 19724

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
77.7494 75.565 37.6174 20 3.061 2.975 1.481 0.787402
Year From:
1967
Year To:
1971
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 17308/020-6 - Piston Set - 6 cylinder for Ford.

From £515.10 (£618.12 inc. VAT @ 20%)

6 cyl piston set 17308 for Ford - 1663 cc OHV Transit 600/850/1100, 101 Engine V4, CR 7.8 to 1. OHV Corsair De Luxe V4 2601E Engine, Industrial V4 CR 9.1 to 1. 6 Cyl 2495 cc OHV Zodiac MkIV...

Comparable to other manufacturer part numbers - 19299

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
93.64726 101.0158 52.0954 23.8125 3.6869 3.977 2.051 15/16
Year From:
1966
WishlistDetails & Ordering
Product Image
Photograph for illustrative purposes only - not actual product shown

CEP P H 17358/060-4 - Piston Set - 4 cylinder for MG.

From £222.20 (£266.64 inc. VAT @ 20%)

4 cyl piston set 17358 for MG - 1798 cc OHV MGB1800, MGBGT, CR 8.75 to 1

Comparable to other manufacturer part numbers - CEP P H 17358

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
80.2513 76.99375 42.06875 20.6375 3.1595 3 1/32 1 21/32 13/16
Year From:
1965
Year To:
1966
WishlistDetails & Ordering
Product Image
Photograph for illustrative purposes only - not actual product shown

CEP P H 17467/020-4 - Piston Set - 4 cylinder for Commer.

From £222.20 (£266.64 inc. VAT @ 20%)

Hillman Imp 875cc
Low comp 8.7:1

Comparable to other manufacturer part numbers - CEP P H 17467

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
70.2564 51.990625 26.590625 15.875 2.766 2 3/64 1 3/64 5/8
Piston Crown Type:
Spec.
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 17547/020-4 - Piston Set - 4 cylinder for Toyota.

From £222.20 (£266.64 inc. VAT @ 20%)

4 cyl piston set 17547 for Toyota - 1587 cc 4R Engine, OHV Corona 1600 S, CR 9.2 to 1

Comparable to other manufacturer part numbers - CEP P H 17547

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
80.5 82.75 43.75 20 3.169291 3.257874 1.722441 0.787402
Year From:
1965
Year To:
1968
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 17566/030-4 - Piston Set - 4 cylinder for Ford.

From £222.20 (£266.64 inc. VAT @ 20%)

4 cyl piston set 17566 for Ford - 1098 cc OHV Escort 1100, 6/8 cwt Van. 2733E Engine, Low Comp CR 8 to 1

Comparable to other manufacturer part numbers - 18680

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
80.98536 83.82 44.2214 20.6375 3.1884 3.3 1.741 13/16
Year From:
1968
Year To:
1970
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 17840/030-4 - Piston Set - 4 cylinder for Saab, Triumph.

From £222.20 (£266.64 inc. VAT @ 20%)

4 cyl piston set 17840 for Saab, Triumph - 1709 cc OHC, CR 8.8 to 1 to Engine JBB7509

Comparable to other manufacturer part numbers - CEP P H 17840

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
64.5668 64.5668 34.0868 20.6375 2.542 2.542 1.342 13/16
Year From:
1969
Year To:
1970
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 18444/020-1 - Piston Set - 1 cylinder for Hillman.

From £50.50 (£60.60 inc. VAT @ 20%)

1 cyl piston set 18444 for Hillman - 1592 cc OHV Minx 1600, Super Minx High Comp. CR 8.83 to 1. 1725 cc OHV Minx, Super Minx, High Comp CR 9.34 to 1, OHV Minx, Hunter, Hunter GT High Comp, CR...

Comparable to other manufacturer part numbers - CEP P H 18444

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
81.53908 72.39 46.99 23.8125 3.2102 2.85 1.85 15/16
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 18510/020-4 - Piston Set - 4 cylinder for Triumph.

From £222.20 (£266.64 inc. VAT @ 20%)

4 cyl piston set 18510 for Triumph - 1991 cc OHV TR2, TR3 Overbored to give 2188 cc, CR 9.24 to 1

Comparable to other manufacturer part numbers - CEP P H 18510

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
87 87.427 50.8 22.225 3.425197 3.442008 2 7/8
Year From:
1953
Year To:
1961
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 18617/010-4 - Piston Set - 4 cylinder for Rover.

From £440.49 (£528.59 inc. VAT @ 20%)

4 cyl piston set 18617 for Rover - 3528 cc OHV, Range Rover, V8, CR 8.25 to 1

Comparable to other manufacturer part numbers - CEP P H 18617

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
88.8619 77.089 47.371 22.225 3.4985 3.035 1.865 7/8
Year From:
1970
Year To:
1977
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 18647/030-4 - Piston Set - 4 cylinder for Ford.

From £303.00 (£363.60 inc. VAT @ 20%)

4 cyl piston set 18647 for Ford - Uprated 711M Engine, Ford Crossflow OHV Kent
1299 cc Original Application:
Ford Capri Mk1 1.3 08/1970-1974
Ford Capri Mk2/Mk3 1.3 1974-1987
Ford Cortina Mk3 1.3...

Comparable to other manufacturer part numbers - JP 0315, 146300, 175 9380, 18632, 420216, 92458600

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
80.98536 83.82 44.2214 20.6375 3.1884 3.3 1.741 13/16
Year From:
25781
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 18683/030-4 - Piston Set - 4 cylinder for Ford.

From £222.20 (£266.64 inc. VAT @ 20%)

4 cyl piston set 18683 for Ford - 1298 cc OHV Escort 1300GT, Capri 1300 GT, 2735E Engine, CR 9.2 to 1

Comparable to other manufacturer part numbers - 17560

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
80.98536 83.82 44.2214 20.6375 3.1884 3.3 1.741 13/16
Year From:
1968
Year To:
1970
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 18685/030-4 - Piston Set - 4 cylinder for Ford.

From £222.20 (£266.64 inc. VAT @ 20%)

4 cyl piston set 18685 for Ford - 1599 cc OHV Cortina 1600, Capri 1600, 2737E Engine, Low Comp CR 8 to 1

Comparable to other manufacturer part numbers - CEP P H 18685

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
80.98536 83.82 44.2214 20.6375 3.1884 3.3 1.741 13/16
Year From:
1968
Year To:
1970
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 18802/STD-4 - Piston Set - 4 cylinder for Austin.

From £222.20 (£266.64 inc. VAT @ 20%)

4 cyl piston set 18802 for Austin - 1798 cc OHV 1800, 1800 HL, 1800 MkII/MkIII CR 9 to 1, 1800S MkII CR 9.5 to 1.

Comparable to other manufacturer part numbers - CEP P H 18802

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
80.23733 61.1124 42.164 20.6375 3.15895 2.406 1.66 13/16
Year From:
1971
Year To:
1975
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 18943/STD-1 - Piston Set - 1 cylinder for Ford.

From £50.50 (£60.60 inc. VAT @ 20%)

1 cyl piston set 18943 for Ford - 997 cc OHV Anglia 105E Engine, CR 8.9 to 1. 1198 cc OHV Anglia Super, Cortina 113E Engine, CR 8.7 to 1. 1499 cc OHV Cortina Super, 116E Engine, CR 8.3 to 1. 1499...

Comparable to other manufacturer part numbers - CEP P H 18943

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
80.9498 64.262 38.9636 20.6375 3.187 2.53 1.534 13/16
Year From:
1960
Year To:
1968
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 19131/STD-2 - Piston Set - 2 cylinder for Ford.

From £111.10 (£133.32 inc. VAT @ 20%)

2 cyl piston set 19131 for Ford - 1969-71 1996 cc OHV Capri 2000GT, V4, CR 8.9 to 1. 1972 onwards 2994 cc OHV Capri, Consul GT, Granada, Granada GXL, 3 litre V6, CR 8.9 to 1

Comparable to other manufacturer part numbers - CEP P H 19131

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
93.64726 95.25 46.1391 23.8125 3.6869 3 3/4 1.8165 15/16
Year From:
1969
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 19160/030-6 - Piston Set - 6 cylinder for Leyland.

From £1414.00 (£1696.80 inc. VAT @ 20%)

6 cyl piston set 19160 for Leyland - 2227 cc OHC 2200 E series/2200HL, CR 9 to 1

Comparable to other manufacturer part numbers - CEP P H 19160

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
76.2 74.7776 43.1292 20.6375 3 8.8817841970013E-16/2 2.944 1.698 13/16
Year From:
1972
Year To:
1975
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 19298/030-6 - Piston Set - 6 cylinder for Ford.

From £418.67 (£502.40 inc. VAT @ 20%)

6 cyl piston set 19298 for Ford - 4 Cyl 1996 cc OHV Transit 1250/1500/1750, 122 Engine V4, CR 7.8 to 1. OHV Corsair GT, Zephyr 4, MkIV, 2000E, 2602E Engine Industrial V4, CR 8.9 to 1. 6 Cyl 2994...

Comparable to other manufacturer part numbers - 17309

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
93.64726 94.9198 46.0629 23.8125 3.6869 3.737 1.8135 15/16
Year From:
1966
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 19298/020-1 - Piston Set - 1 cylinder for Ford.

From £60.60 (£72.72 inc. VAT @ 20%)

1 cyl piston set 19298 for Ford - 7 Cyl 1996 cc OHV Transit 1250/1500/1750, 122 Engine V4, CR 7.8 to 1. OHV Corsair GT, Zephyr 4, MkIV, 2000E, 2602E Engine Industrial V4, CR 8.9 to 1. 6 Cyl 2994...

Comparable to other manufacturer part numbers - 17309

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
93.64726 94.9198 46.0629 23.8125 3.6869 3.737 1.8135 15/16
Year From:
1966
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 19320/030-1 - Piston Set - 1 cylinder for Austin, Mini, Morris.

From £50.50 (£60.60 inc. VAT @ 20%)

1 cyl piston set 19320 for Austin, Mini, Morris - 1963-64 1071 cc OHV Mini Cooper S, CR 9 to 1. 1964/9 1275 cc OHV Mini Cooper S, CR 9.75 to 1. 1967 on, 1275 cc OHV 1300GT, CR 9.75 to 1

Comparable to other manufacturer part numbers - CEP P H 19320

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
70.612 58.6105 38.0365 20.6375 2.78 2.3075 1.4975 13/16
Year From:
1963
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 19470/020-4 - Piston Set - 4 cylinder for Hillman.

From £222.20 (£266.64 inc. VAT @ 20%)

4 cyl piston set 19470 for Hillman - 1295 cc OHV Avenger 1300, GL, GT, CR 8.6 to 1

Comparable to other manufacturer part numbers - CEP P H 19470

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
78.6 75.7682 44.1198 23.8125 3.094488 2.983 1.737 15/16
Year From:
1973
Year To:
1976
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 19603/020-4 - Piston Set - 4 cylinder for Toyota.

From £222.20 (£266.64 inc. VAT @ 20%)

4 cyl piston set 19603 for Toyota - 1077 cc KE10, KE16, K Engines, Corolla, Corolla Van. 1166 cc KE11, KE17, KE18, KE30, 3K-B/C/D, 3K Engines, Corolla, Corolla Coupe, Corolla Van. 4K Engine,...

Comparable to other manufacturer part numbers - 21046

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
75 75 36.1 18 2.952756 2.952756 1.42126 0.708661
Year From:
1967
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 19659/060-4 - Piston Set - 4 cylinder for Nissan.

From £222.20 (£266.64 inc. VAT @ 20%)

4 cyl piston set 19659 for Nissan - 988 cc A10 Engine. 79-81; Cherry 1.0 L, GL. 70-76; Cherry 100A Deluxe L. 76-79; Chery F11, GLS. 66-70; Sunny 1000

Comparable to other manufacturer part numbers - CEP P H 19659

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
73 67.5 32.6 17.45 2.874016 2.65748 1.283465 0.687008
Year From:
1966
Year To:
1981
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 19740/040-4 - Piston Set - 4 cylinder for Toyota.

From £357.87 (£429.44 inc. VAT @ 20%)

4 cyl piston set 19740 for Toyota - 1968 cc 18R, 18RC Engines, Celica 2000, CR 8 to 1

Comparable to other manufacturer part numbers - CEP P H 19740

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
88.5 85 39.8 22 3.484252 3.346457 1.566929 0.866142
Year From:
1971
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 19753/020-1 - Piston Set - 1 cylinder for Leyland.

From £151.50 (£181.80 inc. VAT @ 20%)

1 cyl piston set 19753 for Leyland - 1798 cc OHV 240, 250, Sherpa, CR 6.9 to 1

Comparable to other manufacturer part numbers - CEP P H 19753

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
80.2513 61.1124 42.164 20.6375 3.1595 2.406 1.66 13/16
Year From:
1975
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 19930/020-2 - Piston Set - 2 cylinder for Yamaha.

From £80.80 (£96.96 inc. VAT @ 20%)

2 cyl piston set 19930 for Yamaha - 195 cc RD200 Reed Valve Engine, CR 7.1 to 1, RD200DX Two Stroke

Comparable to other manufacturer part numbers - CEP P H 19930

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
52 62.9 35.9 14 2.047244 2.476378 1.413386 0.551181
Year From:
1971
Year To:
1976
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 19985/030-4 - Piston Set - 4 cylinder for Triumph.

From £363.60 (£436.32 inc. VAT @ 20%)

4 cyl piston set 19985 for Triumph - 1998 cc OHC TR7, CR 9.25 to 1. European Version

Comparable to other manufacturer part numbers - CEP P H 19985

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
90.28684 70 34.1 23.8125 3.5546 2.755906 1.34252 15/16
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 20139/030-1 - Piston Set - 1 cylinder for Triumph.

From £50.50 (£60.60 inc. VAT @ 20%)

1 cyl piston set 20139 for Triumph - 1493 cc OHV 1500, CR 8.5 to 1. OHV 1500, 1500TC, Spitfire 1500, Dolomite 1500, 1500HL, CR 9 to 1

Comparable to other manufacturer part numbers - CEP P H 20139

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
73.6473 58.0898 32.6898 20.6375 2.8995 2.287 1.287 13/16
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 20183/020-4 - Piston Set - 4 cylinder for Mazda.

From £222.20 (£266.64 inc. VAT @ 20%)

4 cyl piston set 20183 for Mazda - 1586 cc NA Engine, OHC, Savanna, Capella, 616, 808, 818, B1600 Pick Up, CR 8.6 to 1

Comparable to other manufacturer part numbers - CEP P H 20183

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
78 78.15 41.25 22 3.070866 3.076772 1.624016 0.866142
Year From:
1970
Year To:
1978
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 20227/030-4 - Piston Set - 4 cylinder for Austin, Morris.

From £222.20 (£266.64 inc. VAT @ 20%)

4 cyl piston set 20227 for Austin, Morris - 1993 cc Princess 2000HL/HLS, Morris OHC Ital 2000 HLS Saloon/Estate, Ambassador 2.0 HL/HLS, Montego 2.0 HL/HLS, 'O' Series Engine, CR 9 to 1

Comparable to other manufacturer part numbers - 21077

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
84.4423 60.2488 35.30092 20.6375 3.3245 2.372 1.3898 13/16
Year From:
1978
Year To:
1985
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 20264/020-4 - Piston Set - 4 cylinder for Land Rover.

From £353.50 (£424.20 inc. VAT @ 20%)

4 cyl piston set 20264 for Land Rover - 3528 cc Rover V8, Range Rover SD1 Engine, CR 9.35 to 1

88.862mm + .020"

Comparable to other manufacturer part numbers - CEP P H 20264

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
88.8619 77.089 47.371 22.225 3.4985 3.035 1.865 7/8
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 20349/020-1 - Piston Set - 1 cylinder for Suzuki.

From £50.50 (£60.60 inc. VAT @ 20%)

1 cyl piston set 20349 for Suzuki - 98 cc A100, A100/2, A100/4, A100K, L, M, N, AS100, ASS100, Two Stroke

Comparable to other manufacturer part numbers - CEP P H 20349

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
50 63.2 31.3 14 1.968504 2.488189 1.232283 0.551181
Year From:
1969
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 20378/030-1 - Piston Set - 1 cylinder for Suzuki.

From £50.50 (£60.60 inc. VAT @ 20%)

1 cyl piston set 20378 for Suzuki - 123 cc 1 Cyl TS125T, K, L, M, A, B, Two Stroke

Comparable to other manufacturer part numbers - CEP P H 20378

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
56 66.5 33.1 14 2.204724 2.61811 1.30315 0.551181
Year From:
1972
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 20548/STD-4 - Piston Set - 4 cylinder for Ford.

From £222.20 (£266.64 inc. VAT @ 20%)

4 cyl piston set 20548 for Ford - 1098 cc OHV Escort 6-8 cwt Van, Escorty 1100, Popular 1100, 751M Engine High Comp, CR 9 to 1.

Comparable to other manufacturer part numbers - 19910

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
80.98536 83.82 44.2214 20.6375 3.1884 3.3 1.741 13/16
Year From:
1975
Year To:
1982
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 20553/STD-4 - Piston Set - 4 cylinder for Ford.

From £222.20 (£266.64 inc. VAT @ 20%)

4 cyl piston set 20553 for Ford - 1599 cc OHV Transit 75/90/115, 751M Engine, Low Comp CR 8 to 1

Comparable to other manufacturer part numbers - 19915

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
80.98536 83.82 44.2214 20.6375 3.1884 3.3 1.741 13/16
Year From:
1975
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 20684/030-4 - Piston Set - 4 cylinder for Lada.

From £226.54 (£271.85 inc. VAT @ 20%)

4 cyl piston set 20684 for Lada - 1294 cc OHC 1300, 1568 cc OHC 1600, Niva 1600, CR 8.5 to 1

Comparable to other manufacturer part numbers - CEP P H 20684

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
78.99 77.25 38.1 22 3.109843 3.041339 1 1/2 0.866142
Year From:
1974
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 20761/030-4 - Piston Set - 4 cylinder for Ford.

From £252.50 (£303.00 inc. VAT @ 20%)

4 cyl piston set 20761 for Ford - 1296 cc CVH Engine OHC Escort 1300 L/GL, Ghia, Estate, CR 9.6 to 1

Comparable to other manufacturer part numbers - CEP P H 20761

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
79.99984 20.6375 3.1496 0 0 13/16
Year From:
29465
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 21075/STD-4 - Piston Set - 4 cylinder for Austin.

From £222.20 (£266.64 inc. VAT @ 20%)

4 cyl piston set 21075 for Austin - 1695 cc 'O' Series OHC Ambassador 1.7L/HL, Princess 1700L/HL/HLS, CR 9 to 1

Comparable to other manufacturer part numbers - 20117

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
84.4423 73.37044 43.41876 20.64258 3.3245 2.8886 1.7094 0.8127
Year From:
1978
Year To:
1984
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 21078/030-4 - Piston Set - 4 cylinder for Toyota.

From £222.20 (£266.64 inc. VAT @ 20%)

4 cyl piston set 21078 for Toyota - 1770 cc 3T/13T Engine. Camry 1800 SX(TA 46/57), Carina 1800 EFI, ST/SE(TA 42/46/47/63), Celeste 1800(TX50), Celica 1800 EFI, SX(E(TA 42/46/47), Corolla 1800...

Comparable to other manufacturer part numbers - CEP P H 21078

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
85 90.75 30.25 22.01 3.346457 3.572835 1.190945 0.866535
Year From:
1977
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 21262/010-4 - Piston Set - 4 cylinder for Vauxhall.

From £222.20 (£266.64 inc. VAT @ 20%)

4 cyl piston set 21262 for Vauxhall - 1598 cc 1.6N, 1.6S Engine, OHC Astra 1600L, GL, SR, Belmont 1600L, GL, GLS, Cavalier, L, GL, LX, SR, GLS. CR 9.2 to 1

Comparable to other manufacturer part numbers - 30-56, 93637600, 93 637, 011 56 00, 175 9818, 90140516

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
80 72 40.05 23 3.149606 2.834646 1.576772 0.905512
Year From:
1981
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 21426/030-1 - Piston Set - 1 cylinder for Ford.

From £60.60 (£72.72 inc. VAT @ 20%)

1 cyl piston set 21426 for Ford - 1993 cc Carb and Fuel Injection. Grenada 2.0i GL, Ghia, Ghia X, Sierra 2.0i S, GLS, Efi, Ghia, Capri 2000S, Granada 2000L, LX, GL, Sierra 2000 L, GL, LX, C, CL,...

Comparable to other manufacturer part numbers - CEP P H 21426

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
90.8 69.55 41.6 24 3.574803 2.738189 1.637795 0.944882
Year From:
1984
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 22074/030-4 - Piston Set - 4 cylinder for Suzuki.

From £222.20 (£266.64 inc. VAT @ 20%)

4 cyl piston set 22074 for Suzuki - 543 cc F5A, Alto Van SS40V, Carry Van/Truck ST40V, ST40, Fronte 550, SS40, SS40FS CR 9.2 to 1

Comparable to other manufacturer part numbers - CEP P H 22074

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
62 67.5 27.5 16 2.440945 2.65748 1.082677 0.629921
Year From:
1980
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 24017/020-1 - Piston Set - 1 cylinder for Ford.

From £50.50 (£60.60 inc. VAT @ 20%)

1 cyl piston set 24017 for Ford - 1297 cc (Courier, Escort 40/55/60/Popular, Fiesta) 1.3 Van, Fiesta Ghia/L/LA/LX. BL13CFI (HCS) Engine, CR 8.8 to 1

Comparable to other manufacturer part numbers - CEP P H 24017

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
73.96 54 29.35 18 2.911811 2.125984 1.155512 0.708661
Year From:
1991
Year To:
1996
WishlistDetails & Ordering
Product Image
Photograph for illustrative purposes only - not actual product shown

CEP P H 164505/030-6 - Piston Set - 6 cylinder for Leyland.

From £1818.00 (£2181.60 inc. VAT @ 20%)

6 cyl piston set 164505 for Leyland - 5.76 Litre, 0350 Mk II, Comet 90, Comet 100, Tiger Club, Diesel

Comparable to other manufacturer part numbers - CEP P H 164505

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
100.62718 132.715 81.915 33.02 3.9617 5.225 3.225 1.3
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 350011/020-1 - Piston Set - 1 cylinder for Petter.

From £70.70 (£84.84 inc. VAT @ 20%)

1 cyl piston set 350011 for Petter - 304 cc OHV AB1, Air Cooled, Diesel. CR 17 to 1

Comparable to other manufacturer part numbers - CEP P H 350011

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
76.2 69.85 44.2595 22.225 3 8.8817841970013E-16/2 2 3/4 1.7425 7/8
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 350026/040-1 - Piston Set - 1 cylinder for Petter.

From £70.70 (£84.84 inc. VAT @ 20%)

1 cyl piston set 350026 for Petter - PAZI, Air Cooled, Diesel

Comparable to other manufacturer part numbers - CEP P H 350026

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
76.2 92 55.042 27 3 8.8817841970013E-16/2 3.622047 2.167008 1.062992
WishlistDetails & Ordering
Product Image
Photograph for illustrative purposes only - not actual product shown

CEP P H 350120/STD-1 - Piston Set - 1 cylinder for Ford.

From £60.60 (£72.72 inc. VAT @ 20%)

1 cyl piston set 350120 for Ford - Dexta 2000 Tractor, 158 cubic inches, Diesel. CR 17 to 1

Comparable to other manufacturer part numbers - 350226

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
106.68 134.112 75.2983 38.1 4.2 5.28 2.9645 1 1/2
Piston Crown Type:
Spec.
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 350188/040-1 - Piston Set - 1 cylinder for David Brown.

From £60.60 (£72.72 inc. VAT @ 20%)

1 cyl piston set 350188 for David Brown - DB1410, DB1412, AD 4/55 Engines, Turbocharged, Diesel, CR 16 to 1

Comparable to other manufacturer part numbers - CEP P H 350188

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
100.04552 105.5624 60.3758 31.75 3.9388 4.156 2.377 1 1/4
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 350258/STD-1 - Piston Set - 1 cylinder for Leyland.

From £202.00 (£242.40 inc. VAT @ 20%)

1 cyl piston set 350258 for Leyland - 11.1 Litre Leyland TL11 Engine Turbocharged, Direct Injection Diesel

Comparable to other manufacturer part numbers - 350415

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
127.01524 169.6212 101.092 2 5.0006 6.678 3.98 0.07874
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 350277/STD-1 - Piston Set - 1 cylinder for Leyland.

From £202.00 (£242.40 inc. VAT @ 20%)

1 cyl piston set 350277 for Leyland - 4 Cyl, 3.77 Litre Leyland 4/98 Series, 6 cyl, 5.65 Litre, 6/98 Series, Turbocharged Diesel, Al Fin Design

Comparable to other manufacturer part numbers - CEP P H 350277

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
98 116.307 68.25 36.5125 3.858268 4.579016 2.687008 1 7/16
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 350364/015-1 - Piston Set - 1 cylinder for Ford.

From £134.21 (£161.05 inc. VAT @ 20%)

1 cyl piston set 350364 for Ford - 4/6 cyl 4149/6224cc Dover 90/130 Engine, 255/380 cubic inch Cargo Ceries Trucks 0606/0709, 380cu.in Cargo Series Trucks 0713/0813/0913/1013, Truck/Tipper...

Comparable to other manufacturer part numbers - CEP P H 350364

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
107.188 119.888 71.247 36.5125 4.22 4.72 2.805 1 7/16
WishlistDetails & Ordering
Product Image
Photograph for illustrative purposes only - not actual product shown

CEP P H 350494/040-1 - Piston Set - 1 cylinder for Volkswagen.

From £50.50 (£60.60 inc. VAT @ 20%)

1 cyl piston set 350494 for Volkswagen - 1588 cc, Caddy, all models, Golf, Industry Engine, Jetta, Passat (not 1982/6), Rabbit (USA), Santana, Transporter 245/247/251/253/255, CR 23 to 1

Comparable to other manufacturer part numbers - 350821

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
76.5 71.7 41.7 24 3.011811 2.822835 1.641732 0.944882
Year From:
1980
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 554505/030-1 - Piston Set - 1 cylinder for Bedford.

From £60.60 (£72.72 inc. VAT @ 20%)

1 cyl piston set 554505 for Bedford - 6 cyl 7634 cc Direct Injection Diesel ERT/ERV/EPR/EMT/EMV/HMX/KMX, KG/KH/KM and YRT Series Trucks. CR 17 to 1

Comparable to other manufacturer part numbers - CEP P H 554505

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
115.824 122.4026 75.7936 38.1 4.56 4.819 2.984 1 1/2
Year From:
1966
Year To:
1975
WishlistDetails & Ordering
Product Image
Photograph for illustrative purposes only - not actual product shown

CEP P H 665362/060-4 - Piston Set - 4 cylinder for Fiat.

From £222.20 (£266.64 inc. VAT @ 20%)

4 cyl piston set 665362 for Fiat - 843 cc OHV, 850 normal and super Super Engine 100G CR 8.5 to 1. Special normal Engine 100GB CR 9.3 to 1. 903 cc OHV Coupe Engine 100 GC, Spider Engine 100GS,...

Comparable to other manufacturer part numbers - CEP P H 665362

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
65 67.25 36.75 20 2.559055 2.647638 1.44685 0.787402
Piston Crown Type:
Spec.
Year From:
1963
Year To:
1971
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 666532/STD-4 - Piston Set - 4 cylinder for Alfa Romeo.

From £292.90 (£351.48 inc. VAT @ 20%)

4 cyl piston set 666532 for Alfa Romeo - Alfasud Ti, Super 1.2/S/SC/Arna 1.2Sl, Piston Pin press fit into con-rod

Comparable to other manufacturer part numbers - CEP P H 666532

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
80 74 39 21 3.149606 2.913386 1.535433 0.826772
Year From:
1973
Year To:
1984
WishlistDetails & Ordering
Product Image
Photograph for illustrative purposes only - not actual product shown

CEP P H 666973/020-6 - Piston Set - 6 cylinder for Fiat.

From £333.30 (£399.96 inc. VAT @ 20%)

6 cyl piston set 666973 for Fiat - 652 cc 126A, 126BB Engine, 2 Cyl, Air cooled. CR 7.5 to 1

Comparable to other manufacturer part numbers - CEP P H 666973

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
77 3.031496 0 0 0
Year From:
1977
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 667909/STD-4 - Piston Set - 4 cylinder for Auto Bianci, Fiat.

From £222.20 (£266.64 inc. VAT @ 20%)

4 cyl piston set 667909 for Auto Bianci, Fiat - 999 cc 156A2.000 Engine, Fiat Panda 1000 4x4 Fire, Uno 45 Fire. Auto Bianci M204B Engine Y 10 Fire LX, Fire 1.0, Fire 4WD.

Comparable to other manufacturer part numbers - 21221601

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
70 57.4 33.9 18 2.755906 2.259843 1.334646 0.708661
Year From:
1985
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 768110/020-4 - Piston Set - 4 cylinder for Simca.

From £222.20 (£266.64 inc. VAT @ 20%)

4 cyl piston set 768110 for Simca - 1118 cc 1100, 1100L, 1100S, 350 Engine, CR 8.2 to 1

Comparable to other manufacturer part numbers - CEP P H 768110

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
74 67 40 22 2.913386 2.637795 1.574803 0.866142
Year From:
1967
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 11592 JP/STD-1 - Piston Set - 1 cylinder for Ford.

From £70.70 (£84.84 inc. VAT @ 20%)

1 cyl piston set 11592 JP for Ford - 4 cyl 15.63h.p. 1508 cc OHV Consul, 6cyl 23.44h.p. 2262 cc OHV Zephyr, Zodiac RBP

Comparable to other manufacturer part numbers - CEP P H 11592 JP

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
79.4004 82.55 47.7012 20.6375 3.126 3 1/4 1.878 13/16
Year From:
1951
Year To:
1956
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H 12587 JP/060-4 - Piston Set - 4 cylinder for Austin.

From £353.50 (£424.20 inc. VAT @ 20%)

4 cyl piston set 12587 JP for Austin - 8.3h.p. 803cc O.H.V. A30/Seven, CR 7.2 to 1

Comparable to other manufacturer part numbers - CEP P H 12587 JP

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
57.912 65.0875 33.3375 14.2875 2.28 2 9/16 1 5/16 9/16
Year From:
1952
Year To:
1956
WishlistDetails & Ordering
Piston Crown TypePiston Crown Type

CEP P H M-0820902/020-4 - Piston Set - 4 cylinder for BMW.

From £585.80 (£702.96 inc. VAT @ 20%)

4 cyl piston set M-0820902 for BMW - 1990 cc, Motor E 21, 80 kW. 320, 320 A, and for USA 320i. CR 8.1 to 1

Comparable to other manufacturer part numbers - CEP P H M-0820902

Metric (mm) English (Inches)
Bore Piston Height Compression Height Gudgeon Pin Dia. Bore Piston Height Compression Height Gudgeon Pin Dia.
89 80.2 42.2 22 3.503937 3.15748 1.661417 0.866142
Year From:
1975
Year To:
1979
WishlistDetails & Ordering
