Oil Seals

Oils Seals are listed under their Payen reference number and usually prefixed with NA or NB, though some early A, B C, D etc prefixed seals are also listed where they do not interchange with later NA and NB numbers. Some of the more common and popular seals are newly remanufactured from modern materials though most are new old stock with many seals made from metal/leather. Where the seal is metal/leather and the leather has become hard, it should be softened before fitting by soaking in warm (35 degrees C) oil for c24 hours. Drain excess oil from the seal before fitting. As well as searching by part number you can also search by major dimensions and application using the search facilities below:

Oil Seals

Material Abbreviations

Prefix letters:

M = Metal Case or Re-inforcement
B = Cork Sealing Element
F = Felt Sealing Element
L = Leather Sealing Element
R = Synthetic Rubber Element (Nitrile)
Si = Silicone Rubber Element
Vi = Viton Rubber Element
Py = Polyacrylic Rubber Element
S = Steel Case or Re-inforcement
B = Brass Case or Re-inforcement

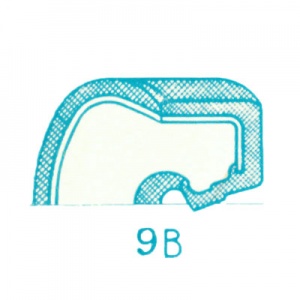

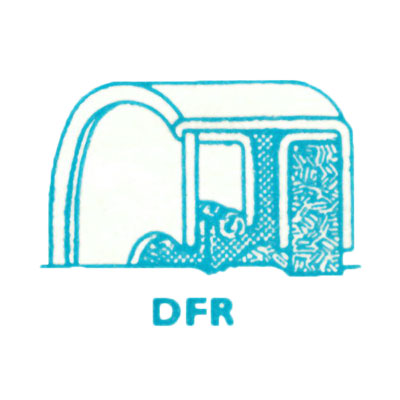

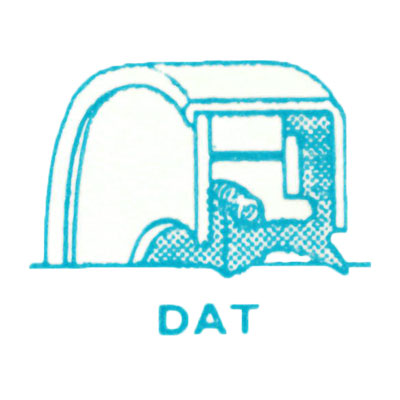

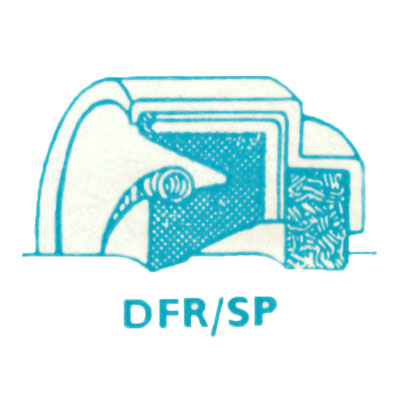

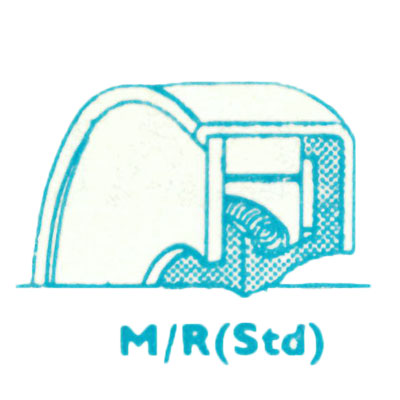

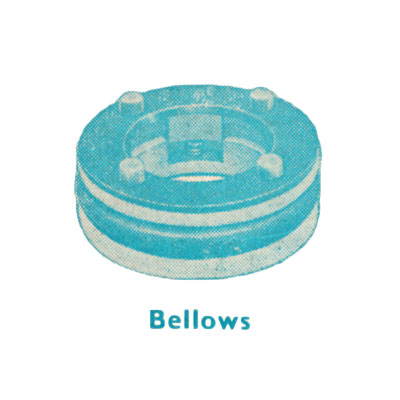

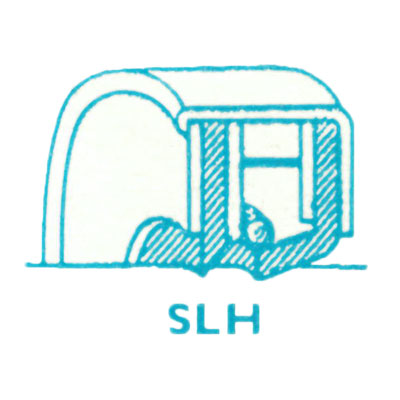

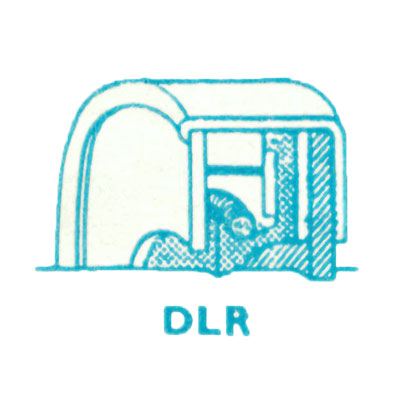

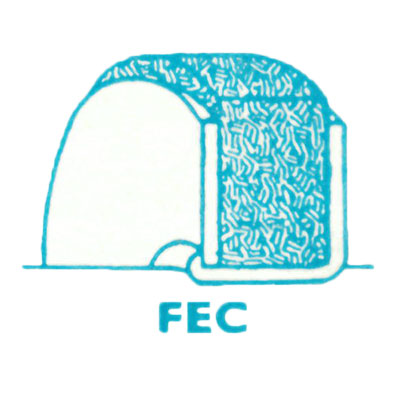

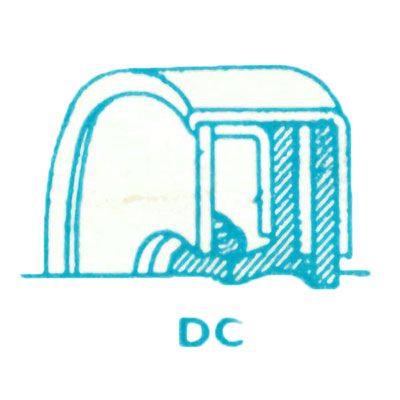

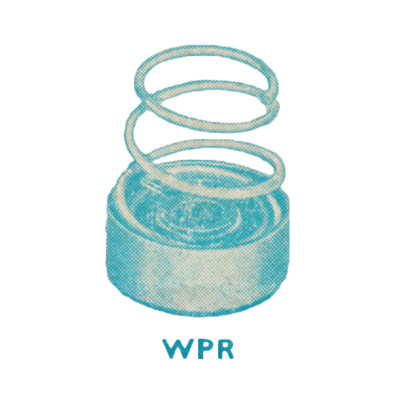

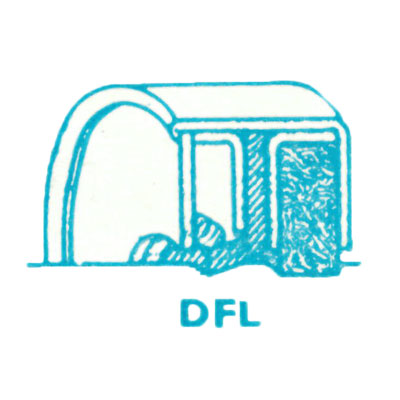

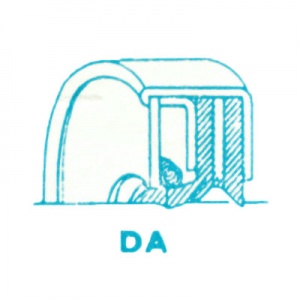

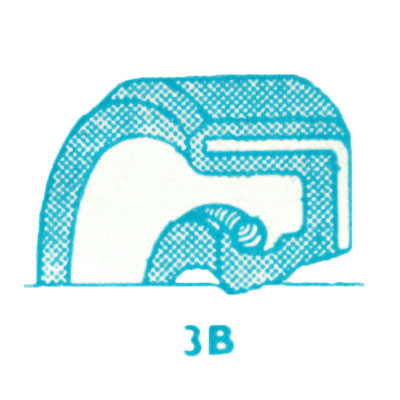

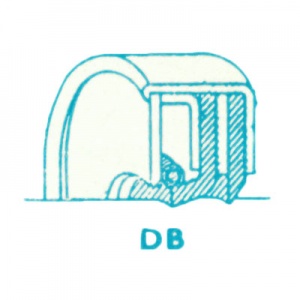

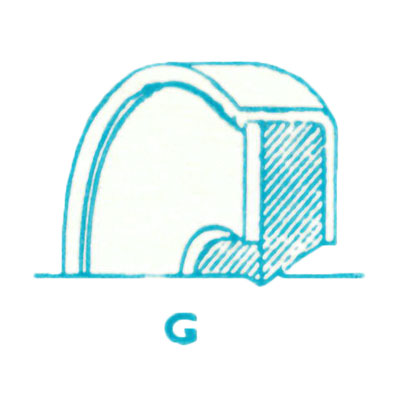

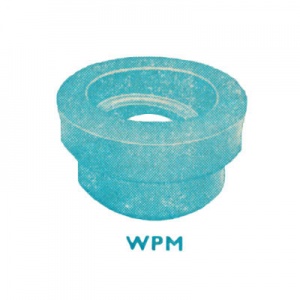

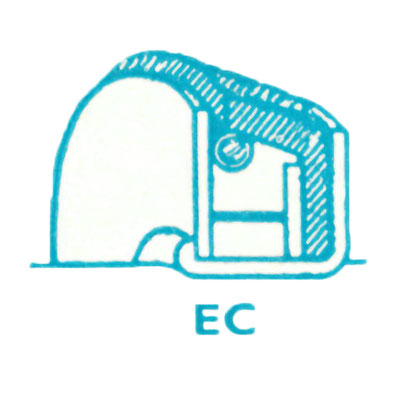

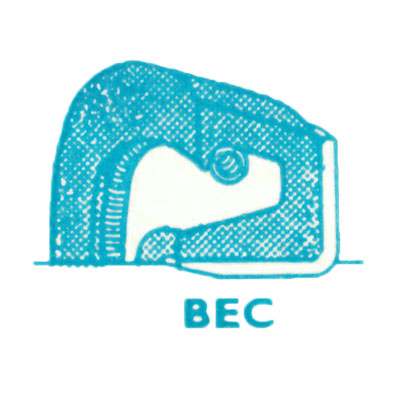

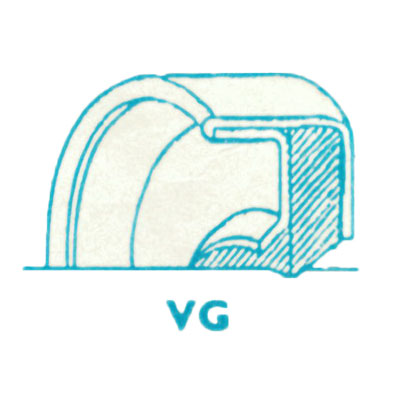

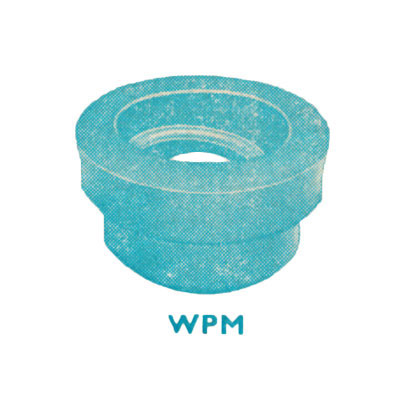

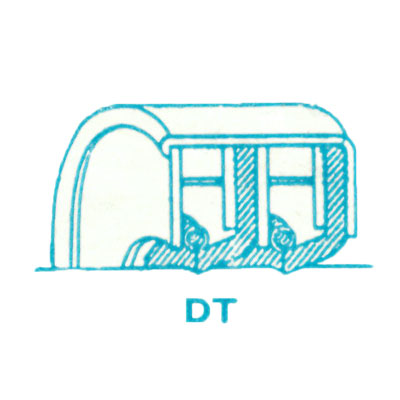

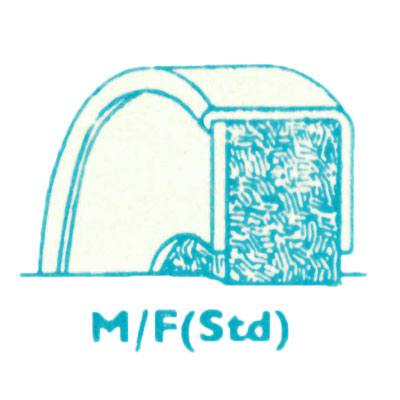

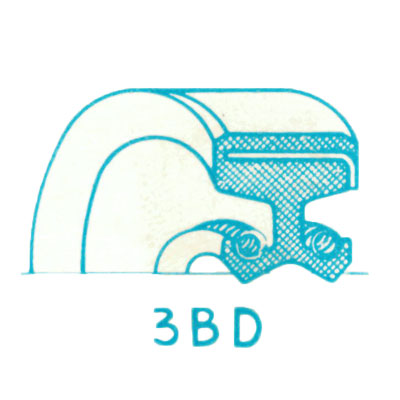

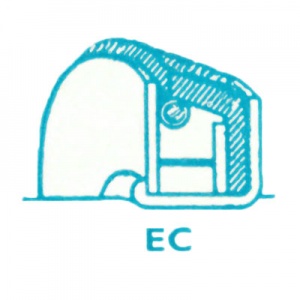

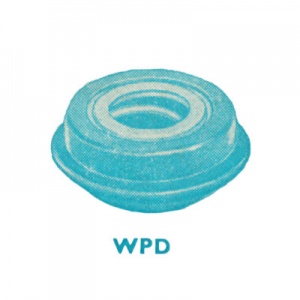

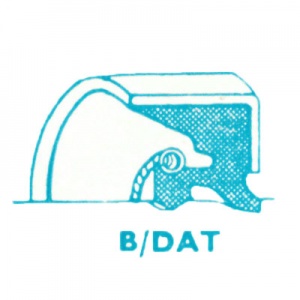

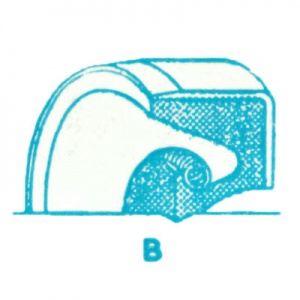

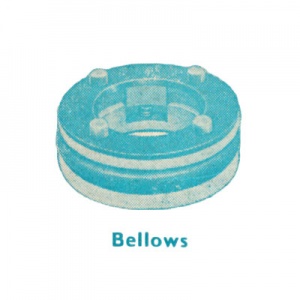

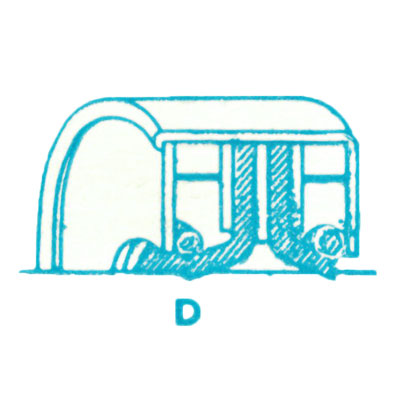

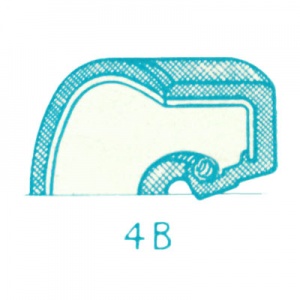

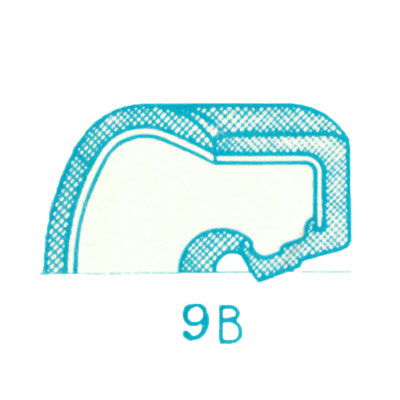

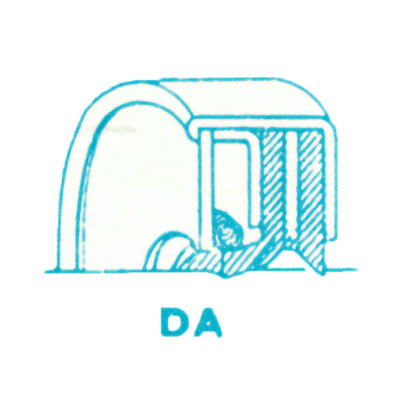

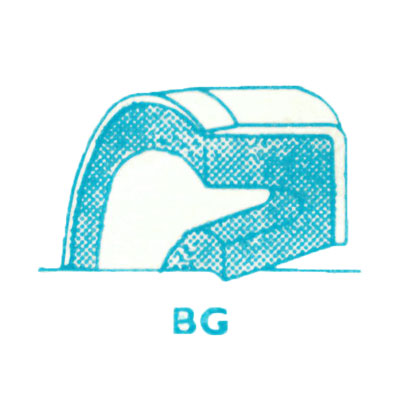

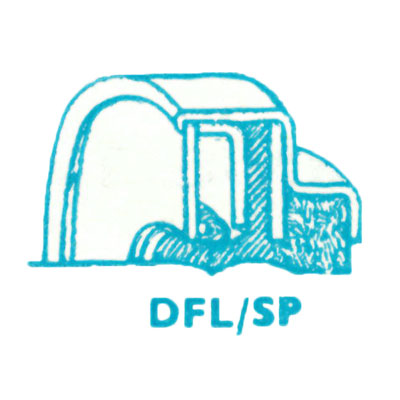

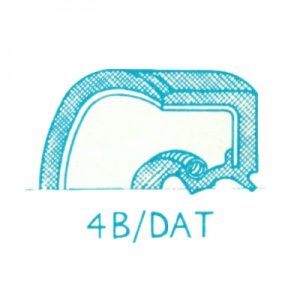

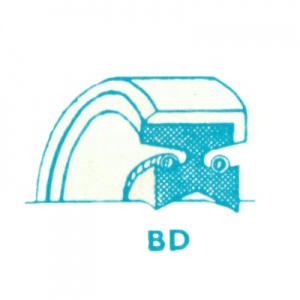

Seal Type – (See images below).

Suffix Letters:

R/H = Right Hand Rotation (Helix or Spiral)
L/H = Left Hand Rotation (Helix or Spiral)
Bi/D = Left or Right Hand Rotation (Bi-directional, Helix or Spiral)

Examples

M/F/L = Metal Case (or Re-inforcement) with (one) Felt and (one) Leather Sealing elements
M/Si(4B)L/H = Metal Case (or Re-inforcement) with (one) Silicone Sealing element, 4B seal design, Left Hand Rotation

Points of note with regard to oil seals:

  • Where it is necessary to replace a bearing or to disturb a seal, a new seal of the correct type and dimensions should be fitted. This is essential in the case of seals that protect the bearings in the hubs (front and rear). If these leak, braking efficiency is reduced. The three key dimensions as indicated in the search facility are:

    • The diameter of the housing into which the seal fits.

    • The diameter of the shaft on which the seal runs.

    • The width of the seal.

  • There are two main types of Oil Seal:-

    • Internal - fitted into the housing and remaining stationary whilst the shaft revolves inside the sealing element.
    • External - fitted on the shaft or boss and the housing rotates round the seal. This type of seal is found mostly in hubs.
  • Shafts should be checked for scoring. Score marks or burrs should be carefully removed.

  • Housings - The surface into which the seal fits should be perfectly smooth. All traces of abrasive matter or degreaser should be removed. Where seals are fitted into an aluminium or alloy housing, a greater amount of interference will be required. A useful tip is to immerse the housing in boiling water for a few minutes, remove it, and whilst it’s still hot, mount the seal and then allow to cool before assembly.
  • Fitting:
    • Remove all abrasive matter from shaft and housing.
    • Remove grease from the seal - use white spirit for leather and thin lubricating oil for synthetic rubber.
    • Smear the sealing element lightly with thin engine oil.
    • If using a dual type seal, always pack the space between the elements with a good quality grease.
    • The Tension Spring is designed to provide the correct loading and should not be altered. Note that the diameter of the sealing element should be approximately 1/16 " smaller than the shaft diameter, although in special applications it may be necessary to provide a different interference.
    • Ensure that the seal is mounted the correct way round. To retain oil or grease, the sealing lip must face the bearing, and to exclude dirt, the sealing lip should point away from the bearing.
    • The use of an Arbor Press is recommended when mounting the Oil Seal into the housing. Alternatively use a bung or drift slightly smaller in diameter than the steel shell of the seal, and ensure that the seal enters the housing squarely.
    • When mounting the shaft into the seal, the best method is to use a thin tapered sleeve.
    • If the housing is a heavy casting, do not allow the seal to rest on the shaft under its weight for any length of time as a permanent set may develop in the sealing element, which will render the seal ineffective. This is a vital consideration in the case of synthetic rubber seals.
Files

Product Image
Photograph for illustrative purposes only - not actual product shown

CEP OS P B108 - Oil Seal

From £12.66 (£15.19 inc. VAT @ 20%)

Daimler Fan, Lanchester Fan

Comparable to other manufacturer part numbers - 4310994441728

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
23.8 38.18 9.9 0.937008 10.50315 0.389764
Fits Makes:
Daimler Fan, Lanchester Fan
Product Image
Photograph for illustrative purposes only - not actual product shown

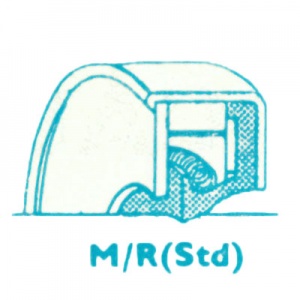

CEP OS P B108 M/R - Oil Seal

From £10.55 (£12.66 inc. VAT @ 20%)

Oil Seal

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
23.8 38.18 9.9 0.937008 10.50315 0.389764
Product Image
Photograph for illustrative purposes only - not actual product shown

CEP OS P B110 - Oil Seal

From £10.55 (£12.66 inc. VAT @ 20%)

Standard Gearbox, front

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
23.8 41.3 9.5 0.937008 10.625984 0.374016
Fits Makes:
Standard Gearbox, front
Product Image
Photograph for illustrative purposes only - not actual product shown

CEP OS P B116 - Oil Seal

From £10.55 (£12.66 inc. VAT @ 20%)

Austin Gearbox fron, Ford Rear Axle Shaft

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
26.9 44.53 11.1 10.059055 10.75315 0.437008
Fits Makes:
Austin Gearbox fron, Ford Rear Axle Shaft
Product Image
Photograph for illustrative purposes only - not actual product shown

CEP OS P B121 - Oil Seal

From £12.66 (£15.19 inc. VAT @ 20%)

A.J.S. M/C Tele. Legs, Austin Gearbox front, Daimler Servo pump driveshaft, Fordson tractor handbrake camshaft, Ransome PTO shaft, Triumph Rear axle shaft

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
28.5 44.53 11.1 10.122047 10.75315 0.437008
Fits Makes:
A.J.S. M/C Tele. Legs, Austin Gearbox front, Daimler Servo pump driveshaft, Fordson tractor handbrake camshaft, Ransome PTO shaft, Triumph Rear axle shaft
Product Image
Photograph for illustrative purposes only - not actual product shown

CEP OS P B122 - Oil Seal

From £12.66 (£15.19 inc. VAT @ 20%)

BSA Fan, Guy Camshaft, Humber Water pump, Standard Rear axle inner, Triumph Rear axle shaft

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
27.8 44.53 11.1 10.094488 10.75315 0.437008
Fits Makes:
BSA Fan, Guy Camshaft, Humber Water pump, Standard Rear axle inner, Triumph Rear axle shaft
Product Image
Photograph for illustrative purposes only - not actual product shown

CEP OS P B123 - Oil Seal

From £12.66 (£15.19 inc. VAT @ 20%)

Austin gearbox front

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
30.1 44.53 11.1 10.185039 10.75315 0.437008
Fits Makes:
Austin gearbox front
Product Image
Photograph for illustrative purposes only - not actual product shown

CEP OS P B128 - Oil Seal

From £12.66 (£15.19 inc. VAT @ 20%)

M.G. Gearbox, Morris Gearbox, Morris Comm. Gearbox, Riley Gearbox, Wolesley Gearbox

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
30.1 46.53 11.1 10.185039 10.83189 0.437008
Fits Makes:
M.G. Gearbox, Morris Gearbox, Morris Comm. Gearbox, Riley Gearbox, Wolesley Gearbox
Product Image
Photograph for illustrative purposes only - not actual product shown

CEP OS P B131 - Oil Seal

From £13.71 (£16.45 inc. VAT @ 20%)

Allard Pinion, Ford (truck/pass/military) Pinion Drive and rear axle shaft, Lincoln Pinion

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
27.8 46.53 11.5 10.094488 10.83189 0.452756
Fits Makes:
Allard Pinion, Ford (truck/pass/military) Pinion Drive and rear axle shaft, Lincoln Pinion
Product Image
Photograph for illustrative purposes only - not actual product shown

CEP OS P B132 - Oil Seal

From £13.71 (£16.45 inc. VAT @ 20%)

Ferguson Tractor Steering

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
33.3 60.33 14.3 10.311024 20.375197 0.562992
Fits Makes:
Ferguson Tractor Steering
Product Image
Photograph for illustrative purposes only - not actual product shown

CEP OS P B135 - Oil Seal

From £13.71 (£16.45 inc. VAT @ 20%)

Oil Seal

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
34.9 48.18 12.7 10.374016 10.89685 1/2
Product Image
Photograph for illustrative purposes only - not actual product shown

CEP OS P B136 - Oil Seal

From £13.71 (£16.45 inc. VAT @ 20%)

Oil Seal

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
26.9 49.05 11.1 10.059055 10.931102 0.437008
Product Image
Photograph for illustrative purposes only - not actual product shown

CEP OS P B138 - Oil Seal

From £13.71 (£16.45 inc. VAT @ 20%)

Oil Seal

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
30.1 49.05 11.1 10.185039 10.931102 0.437008
Product Image
Photograph for illustrative purposes only - not actual product shown

CEP OS P B139 - Oil Seal

From £13.71 (£16.45 inc. VAT @ 20%)

Oil Seal

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
30.1 49.05 11.1 10.185039 10.931102 0.437008
Product Image
Photograph for illustrative purposes only - not actual product shown

CEP OS P B140 - Oil Seal

From £13.71 (£16.45 inc. VAT @ 20%)

Oil Seal

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
33.3 49.05 11.1 10.311024 10.931102 0.437008
Product Image
Photograph for illustrative purposes only - not actual product shown

CEP OS P B147 - Oil Seal

From £12.66 (£15.19 inc. VAT @ 20%)

Oil Seal

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
26.9 42.93 7.1 10.059055 10.690157 0.279528
Product Image
Photograph for illustrative purposes only - not actual product shown

CEP OS P B149 - Oil Seal

From £12.66 (£15.19 inc. VAT @ 20%)

Oil Seal

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
25.4 36.58 6.3 1 10.440157 0.248031
Product Image
Photograph for illustrative purposes only - not actual product shown

CEP OS P B159 - Oil Seal

From £10.55 (£12.66 inc. VAT @ 20%)

Oil Seal

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
25.4 44.98 12.7 1 10.770866 1/2
Product Image
Photograph for illustrative purposes only - not actual product shown

CEP OS P B160 - Oil Seal

From £15.82 (£18.98 inc. VAT @ 20%)

Oil Seal

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
31.7 46.08 10.3 10.248031 10.814173 0.405512
Product Image
Photograph for illustrative purposes only - not actual product shown

CEP OS P B162 - Oil Seal

From £15.82 (£18.98 inc. VAT @ 20%)

Oil Seal

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
31.7 50.47 12.7 10.248031 10.987008 1/2
Product Image
Photograph for illustrative purposes only - not actual product shown

CEP OS P B168 - Oil Seal

From £12.66 (£15.19 inc. VAT @ 20%)

Oil Seal

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
34.9 48.18 9.5 10.374016 10.89685 0.374016
Product Image
Photograph for illustrative purposes only - not actual product shown

CEP OS P B170 - Oil Seal

From £10.55 (£12.66 inc. VAT @ 20%)

Oil Seal

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
20.6 35.08 9.5 0.811024 10.381102 0.374016
Product Image
Photograph for illustrative purposes only - not actual product shown

CEP OS P B188 - Oil Seal

From £12.66 (£15.19 inc. VAT @ 20%)

Oil Seal

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
19 38.18 7.9 0.748031 10.50315 0.311024
Product Image
Photograph for illustrative purposes only - not actual product shown

CEP OS P B189 - Oil Seal

From £12.66 (£15.19 inc. VAT @ 20%)

Oil Seal

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
11.1 28.65 10.3 0.437008 10.127953 0.405512
Product Image
Photograph for illustrative purposes only - not actual product shown

CEP OS P B192 - Oil Seal

From £15.82 (£18.98 inc. VAT @ 20%)

Oil Seal

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
8.7 25.48 7.9 0.34252 10.00315 0.311024
Product Image
Photograph for illustrative purposes only - not actual product shown

CEP OS P B208 - Oil Seal

From £12.66 (£15.19 inc. VAT @ 20%)

Oil Seal

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
33.3 49.3 9.5 10.311024 10.940945 0.374016

CEP OS P B234 - Oil Seal

From £12.66 (£15.19 inc. VAT @ 20%)

Waukesha Governor, Oliver/Cletrac Governor, Novi Governor, M/Ferguson Governor, Mack Trans Shift, International Manifold, Continental Governor, Clark Governor

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material

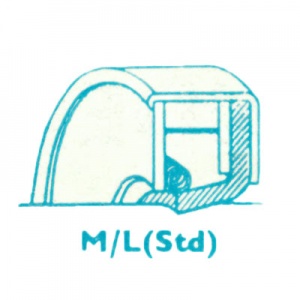

11.1 25.48 9.5 0.437008 10.00315 0.374016 M/L(Std)
Fits Makes:
Waukesha Governor, Oliver/Cletrac Governor, Novi Governor, M/Ferguson Governor, Mack Trans Shift, International Manifold, Continental Governor, Clark Governor

CEP OS P B236 - Oil Seal

From £10.55 (£12.66 inc. VAT @ 20%)

Scammell Water Pump, International Fuel Pump, Hall-Scott Various, Caterpillar Governor

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
15.8 35 9.5 0.622047 10.377953 0.374016 M/F(Std)
Fits Makes:
Scammell Water Pump, International Fuel Pump, Hall-Scott Various, Caterpillar Governor

CEP OS P B254 - Oil Seal

From £10.55 (£12.66 inc. VAT @ 20%)

Vauxhall Rear Axle

Comparable to other manufacturer part numbers - WR103

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
31.7 48.18 12.7 10.248031 10.89685 1/2 M/R(Std)
Fits Makes:
Vauxhall Rear Axle

CEP OS P B258 - Oil Seal

From £10.55 (£12.66 inc. VAT @ 20%)

Sunbeam m/c Front Forks, BSA Front Forks, Ariel Front Forks

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
31.7 46.61 9.5 10.248031 10.835039 0.374016 M/R(B)
Fits Makes:
Sunbeam m/c Front Forks, BSA Front Forks, Ariel Front Forks

CEP OS P B264 - Oil Seal

From £12.66 (£15.19 inc. VAT @ 20%)

Pierce Governor, Johnson Pinion, Cov Climax Hyd Pump, Cockshutt Governor

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
14.2 28.65 9.5 0.559055 10.127953 0.374016 M/R(3B)
Fits Makes:
Pierce Governor, Johnson Pinion, Cov Climax Hyd Pump, Cockshutt Governor

CEP OS P B265 - Oil Seal

From £12.66 (£15.19 inc. VAT @ 20%)

Norton m/c Front Forks

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
34.1 47.7 11.1 10.34252 10.877953 0.437008 M/R(B)
Fits Makes:
Norton m/c Front Forks

CEP OS P B266 - Oil Seal

From £12.66 (£15.19 inc. VAT @ 20%)

Simca Fan Shaft, Fiat Fan Shaft

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
17 30.08 5 0.669291 10.184252 0.19685 M/F(Std)
Fits Makes:
Simca Fan Shaft, Fiat Fan Shaft
Product Image
Photograph for illustrative purposes only - not actual product shown

CEP OS P B301 - Oil Seal

From £21.10 (£25.32 inc. VAT @ 20%)

Caterpillar Flywheel

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
25.4 38.18 18.2 1 10.50315 0.716535 M/L/L(LD)
Fits Makes:
Caterpillar Flywheel

CEP OS P B304 - Oil Seal

From £10.55 (£12.66 inc. VAT @ 20%)

Excelsior M/c Gearbox

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
15 35 8.7 0.590551 10.377953 0.34252 M/R(Std)
Fits Makes:
Excelsior M/c Gearbox

CEP OS P B305 - Oil Seal

From £10.55 (£12.66 inc. VAT @ 20%)

Excelsior M/c Various, Brockhouse Axle

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
28.5 41.28 9.5 10.122047 10.625197 0.374016 M/R(Std)
Fits Makes:
Excelsior M/c Various, Brockhouse Axle

CEP OS P B307 - Oil Seal

From £10.55 (£12.66 inc. VAT @ 20%)

Triumph M/c Magneto, BTH Magneto, Ariel M/c Magneto

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
15 31.12 3.18 0.590551 10.225197 0.125197 M/R(B)
Fits Makes:
Triumph M/c Magneto, BTH Magneto, Ariel M/c Magneto

CEP OS P B310 - Oil Seal

From £21.10 (£25.32 inc. VAT @ 20%)

Standard Gearbox

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
30.2 51 27.8 10.188976 20.007874 10.094488 M/F/R(Spec)
Fits Makes:
Standard Gearbox

CEP OS P B311 - Oil Seal

From £15.82 (£18.98 inc. VAT @ 20%)

Morgan Gearbox, Ford Thames Gearbox, Ford Gearbox

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
30.1 43.64 15.8 10.185039 10.71811 0.622047 M/F/L(DFL)
Fits Makes:
Morgan Gearbox, Ford Thames Gearbox, Ford Gearbox

CEP OS P B313 - Oil Seal

From £9.49 (£11.39 inc. VAT @ 20%)

Mini-Motor Crankshaft

Comparable to other manufacturer part numbers - 5330008087151

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
15.8 31.83 7.9 0.622047 10.25315 0.311024 M/R(B)
Fits Makes:
Mini-Motor Crankshaft

CEP OS P B314 - Oil Seal

From £9.49 (£11.39 inc. VAT @ 20%)

Simms Fuel Pump, CAV Fuel Pump

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
20 35 6.2 0.787402 10.377953 0.244094 M/R(B)
Fits Makes:
Simms Fuel Pump, CAV Fuel Pump

CEP OS P B323 - Oil Seal

From £12.66 (£15.19 inc. VAT @ 20%)

Waukesha Access. Drive, Rototiller Magneto, Caterpillar Various

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
14.3 28.65 9.5 0.562992 10.127953 0.374016 M/L(Std)
Fits Makes:
Waukesha Access. Drive, Rototiller Magneto, Caterpillar Various
Product Image
Photograph for illustrative purposes only - not actual product shown

CEP OS P B325 - Oil Seal

From £10.55 (£12.66 inc. VAT @ 20%)

Oil Seal

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
30.9 44.61 6.3 10.216535 10.756299 0.248031

CEP OS P B335 - Oil Seal

From £10.55 (£12.66 inc. VAT @ 20%)

Royal Enfield Dynamo, Lucas Dynamo, Ariel M/c Dynamo

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
28.5 44.53 9.5 10.122047 10.75315 0.374016 M/R(B)
Fits Makes:
Royal Enfield Dynamo, Lucas Dynamo, Ariel M/c Dynamo

CEP OS P B336 - Oil Seal

From £10.55 (£12.66 inc. VAT @ 20%)

Royal Enfield Front Forks, Reavell Exhauster, Leyland Exhauster

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
34.9 47.7 7.9 10.374016 10.877953 0.311024 M/R(B)
Fits Makes:
Royal Enfield Front Forks, Reavell Exhauster, Leyland Exhauster

CEP OS P B338 - Oil Seal

From £10.55 (£12.66 inc. VAT @ 20%)

BSA Mcycle Magdyno pinion

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
20.6 38.18 4.8 0.811024 10.50315 0.188976 M/R(B)
Fits Makes:
BSA Mcycle Magdyno pinion

CEP OS P B339 - Oil Seal

From £16.88 (£20.26 inc. VAT @ 20%)

County Track Roller

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
28.5 44.53 17.5 10.122047 10.75315 0.688976 M/L/L(DT)
Fits Makes:
County Track Roller

CEP OS P B341 - Oil Seal

From £8.44 (£10.13 inc. VAT @ 20%)

Matchless Kickstart, Ariel Mcycle Kickstart, AJS Mcycle Kickstart

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
17.7 28.77 6.4 0.69685 10.132677 0.251969 M/R(4B)
Fits Makes:
Matchless Kickstart, Ariel Mcycle Kickstart, AJS Mcycle Kickstart

CEP OS P B345 - Oil Seal

From £13.71 (£16.45 inc. VAT @ 20%)

Perkins Fuel Pump

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
25.4 50.43 11.1 1 10.985433 0.437008 M/R(Std)
Fits Makes:
Perkins Fuel Pump

CEP OS P B350 - Oil Seal

From £8.44 (£10.13 inc. VAT @ 20%)

Miller Magneto, Excelsior Magneto

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
19 33.4 6.3 0.748031 10.314961 0.248031 M/R(B)
Fits Makes:
Miller Magneto, Excelsior Magneto

CEP OS P B351 - Oil Seal

From £10.55 (£12.66 inc. VAT @ 20%)

Mini-Motor Crankshaft

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
22.2 35 7.9 0.874016 10.377953 0.311024 M/R(B/DAT)
Fits Makes:
Mini-Motor Crankshaft

CEP OS P B352 - Oil Seal

From £10.55 (£12.66 inc. VAT @ 20%)

Vespa Crankshaft

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
18 34.28 8 0.708661 10.349606 0.314961 M/R(B)
Fits Makes:
Vespa Crankshaft

CEP OS P B353 - Oil Seal

From £9.49 (£11.39 inc. VAT @ 20%)

Vespa Crankshaft

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
27 42.08 10 10.062992 10.656693 0.393701 M/R(4B)
Fits Makes:
Vespa Crankshaft

CEP OS P B354 - Oil Seal

From £10.55 (£12.66 inc. VAT @ 20%)

Excelsior Crankshaft, Coronet Crankshaft, Berkeley Crankshaft

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
26.9 44.53 11.1 10.059055 10.75315 0.437008 M/R(B)
Fits Makes:
Excelsior Crankshaft, Coronet Crankshaft, Berkeley Crankshaft

CEP OS P B357 - Oil Seal

From £12.66 (£15.19 inc. VAT @ 20%)

Sunbeam Mc Hubs, AEC Rotor

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
28.5 46.53 10.3 10.122047 10.83189 0.405512 M/L(Std)
Fits Makes:
Sunbeam Mc Hubs, AEC Rotor

CEP OS P B368 - Oil Seal

From £10.55 (£12.66 inc. VAT @ 20%)

BSA Mcycle Crankcase, Ariel Mcycle Crankcase

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
33.3 48.18 6.3 10.311024 10.89685 0.248031 M/R(B)
Fits Makes:
BSA Mcycle Crankcase, Ariel Mcycle Crankcase

CEP OS P B370 - Oil Seal

From £8.44 (£10.13 inc. VAT @ 20%)

Standard Steering, Morris Steering, Horndraulic Hyd Ram, Bishop Steering, Austin Healey Steering, Austin Steering

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
25.4 38.35 7.9 1 10.509843 0.311024 M/R(3B)
Fits Makes:
Standard Steering, Morris Steering, Horndraulic Hyd Ram, Bishop Steering, Austin Healey Steering, Austin Steering

CEP OS P B371 - Oil Seal

From £10.55 (£12.66 inc. VAT @ 20%)

AEC Gearbox

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
15.8 28.77 9.5 0.622047 10.132677 0.374016 M/R(3BD)
Fits Makes:
AEC Gearbox

CEP OS P B375 - Oil Seal

From £10.55 (£12.66 inc. VAT @ 20%)

Wolseley Steering, Riley Steering, Power Pak Crankcase

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
28.6 41.35 7.9 10.125984 10.627953 0.311024 M/R(B)
Fits Makes:
Wolseley Steering, Riley Steering, Power Pak Crankcase

CEP OS P B377 - Oil Seal

From £12.66 (£15.19 inc. VAT @ 20%)

Vespa Crankshaft

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
18 35.08 8 0.708661 10.381102 0.314961 M/R(Std)
Fits Makes:
Vespa Crankshaft

CEP OS P B379 - Oil Seal

From £10.55 (£12.66 inc. VAT @ 20%)

Parilla Flywheel, Cyclemaster Crankcase

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
18 32.1 8 0.708661 10.26378 0.314961 M/R(B)
Fits Makes:
Parilla Flywheel, Cyclemaster Crankcase

CEP OS P B381 - Oil Seal

From £10.55 (£12.66 inc. VAT @ 20%)

Willys Rear Hub, Studebaker Steering, Rambler Rear Hub, Cadillac Steering, Bucyrus-Erie Press. Unit

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
28.6 39.8 6.3 10.125984 10.566929 0.248031 M/R(9B)
Fits Makes:
Willys Rear Hub, Studebaker Steering, Rambler Rear Hub, Cadillac Steering, Bucyrus-Erie Press. Unit

CEP OS P B385 - Oil Seal

From £10.55 (£12.66 inc. VAT @ 20%)

Lincoln Steering, GM Steering

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
31.7 44.65 9.5 10.248031 10.757874 0.374016 M/R(4B)
Fits Makes:
Lincoln Steering, GM Steering

CEP OS P B390 - Oil Seal

From £16.88 (£20.26 inc. VAT @ 20%)

Ford Thames Trans Rear, Ford Trans Rear, Borg-Warner Trans Rear

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
34.9 49.55 15.8 10.374016 10.950787 0.622047 M/L/L(DC)
Fits Makes:
Ford Thames Trans Rear, Ford Trans Rear, Borg-Warner Trans Rear

CEP OS P B393 - Oil Seal

From £9.49 (£11.39 inc. VAT @ 20%)

Zundapp Gearshift, Villiers Gearbox, Triumph Mc Rear hub, NSU Mcycle Various, Mercedes-B Steering, Lloyd Pass. Front Axle, Lanz Gearbox, Lambretta Crankshaft, Champion Rear Axle, BSA Mcycle Rear...

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
32 45.2 7 10.259843 10.779528 0.275591 M/R(4B)
Fits Makes:
Zundapp Gearshift, Villiers Gearbox, Triumph Mc Rear hub, NSU Mcycle Various, Mercedes-B Steering, Lloyd Pass. Front Axle, Lanz Gearbox, Lambretta Crankshaft, Champion Rear Axle, BSA Mcycle Rear Hub, Borgward Steering, BMW Mcycle Cardan shaft, Ardie Mc Gearbox

CEP OS P B395 - Oil Seal

From £9.49 (£11.39 inc. VAT @ 20%)

Villiers Crankshaft, Petter McLaren Not Given, AEC Water Pump

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
26.9 47.82 9.5 10.059055 10.882677 0.374016 M/R(4B)
Fits Makes:
Villiers Crankshaft, Petter McLaren Not Given, AEC Water Pump

CEP OS P B398 - Oil Seal

From £8.44 (£10.13 inc. VAT @ 20%)

Saurer Trans Outer, Mercedes-B Various, MAN Truck Various, Jlo Kickstart, Flandria Crankcase

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
18 30.2 7 0.708661 10.188976 0.275591 M/R(4B)
Fits Makes:
Saurer Trans Outer, Mercedes-B Various, MAN Truck Various, Jlo Kickstart, Flandria Crankcase

CEP OS P B405 - Oil Seal

From £10.55 (£12.66 inc. VAT @ 20%)

M/Ferguson Trans Drive

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
28.5 39.9 9.5 10.122047 10.570866 0.374016 M/R(3B)
Fits Makes:
M/Ferguson Trans Drive

CEP OS P B416 - Oil Seal

From £12.66 (£15.19 inc. VAT @ 20%)

Lambretta Crankshaft

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
17 40.2 7 0.669291 10.582677 0.275591 M/R(4B)
Fits Makes:
Lambretta Crankshaft

CEP OS P B418 - Oil Seal

From £8.44 (£10.13 inc. VAT @ 20%)

Lambretta Crankshaft

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
31 47.2 7 10.220472 10.858268 0.275591 M/R(4B)
Fits Makes:
Lambretta Crankshaft

CEP OS P B424 - Oil Seal

From £12.66 (£15.19 inc. VAT @ 20%)

M/Ferguson Steering

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
22.2 46.53 15.8 0.874016 10.83189 0.622047 M/F/L(DFL)
Fits Makes:
M/Ferguson Steering

CEP OS P B432 - Oil Seal

From £10.55 (£12.66 inc. VAT @ 20%)

NSU Mcycle F&R Hubs

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
17.859375 30.353 5.159375 45/64 10.195 13/64 M/R(BG)
Fits Makes:
NSU Mcycle F&R Hubs

CEP OS P B434 - Oil Seal

From £12.66 (£15.19 inc. VAT @ 20%)

Jaguar Gearbox

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
31.75 47.7012 9.525 1 1/4 10.878 3/8 M/L(Std)
Fits Makes:
Jaguar Gearbox

CEP OS P B449 - Oil Seal

From £12.66 (£15.19 inc. VAT @ 20%)

Cummins Overspeed, Bendix Brake Unit, Allis Chalmers Gear Cover

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
8.5 25.4 9.6 0.334646 1 0.377953 M/L(Std)
Fits Makes:
Cummins Overspeed, Bendix Brake Unit, Allis Chalmers Gear Cover

CEP OS P B450 - Oil Seal

From £10.55 (£12.66 inc. VAT @ 20%)

Johnson Propshaft, Crossley Speedo

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
15.875 35.0012 9.525 5/8 10.378 3/8 M/R(Std)
Fits Makes:
Johnson Propshaft, Crossley Speedo

CEP OS P B458 - Oil Seal

From £10.55 (£12.66 inc. VAT @ 20%)

Zundapp Crankshaft, T.W.N. M/cyc Crankshaft, Scania Vabis Water Pump, Puch Crankshaft, Fiat Tractor Fan

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
19.84375 47.1932 9.921875 25/32 10.858 25/64 M/R(4B)
Fits Makes:
Zundapp Crankshaft, T.W.N. M/cyc Crankshaft, Scania Vabis Water Pump, Puch Crankshaft, Fiat Tractor Fan

CEP OS P B460 - Oil Seal

From £10.55 (£12.66 inc. VAT @ 20%)

Rumi Crankshaft, Messerschmitt Rear Hub, Ardie Crankshaft

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
25.003125 42.1894 9.921875 63/64 10.661 25/64 M/R(4B)
Fits Makes:
Rumi Crankshaft, Messerschmitt Rear Hub, Ardie Crankshaft

CEP OS P B461 - Oil Seal

From £8.44 (£10.13 inc. VAT @ 20%)

Zundapp Various, T.W.N. M/cyc Crankshaft

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
25.003125 45.1866 9.921875 63/64 10.779 25/64 M/R(4B)
Fits Makes:
Zundapp Various, T.W.N. M/cyc Crankshaft

CEP OS P B472 - Oil Seal

From £6.33 (£7.60 inc. VAT @ 20%)

Norton Gearbox, Matchless Gearbox, James Gearbox, Francis-Barn't Gearbox, AJS M/c Gearbox

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
33.3375 46.101 5.55625 1 5/16 10.815 7/32 M/R(B)
Fits Makes:
Norton Gearbox, Matchless Gearbox, James Gearbox, Francis-Barn't Gearbox, AJS M/c Gearbox

CEP OS P B477 - Oil Seal

From £10.55 (£12.66 inc. VAT @ 20%)

N.S.U. Crankshaft, Lambretta Crankshaft, Capri Scootr Crankshaft

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
17.065625 40.1828 8.334375 43/64 10.582 21/64 M/R(4B)
Fits Makes:
N.S.U. Crankshaft, Lambretta Crankshaft, Capri Scootr Crankshaft

CEP OS P B478 - Oil Seal

From £8.44 (£10.13 inc. VAT @ 20%)

N.S.U. Crankcase, Merc-Benz Fan Bearing, Maico Crankshaft, Lambretta Pinion

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
22.225 35.179 7.9375 7/8 10.385 5/16 M/R(4B)
Fits Makes:
N.S.U. Crankcase, Merc-Benz Fan Bearing, Maico Crankshaft, Lambretta Pinion

CEP OS P B485 - Oil Seal

From £2.11 (£2.53 inc. VAT @ 20%)

Lanz Various, Jlo Crankcase, Goliath Rear Axle

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
30.1625 50.1904 9.921875 1 3/16 10.976 25/64 M/R(4B)
Fits Makes:
Lanz Various, Jlo Crankcase, Goliath Rear Axle

CEP OS P B486 - Oil Seal

From £8.44 (£10.13 inc. VAT @ 20%)

Zundapp Cardan Shaft, D.K.W. Crankshaft

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
35.3 47.1 10 10.389764 10.854331 0.393701 M/R(4B)
Fits Makes:
Zundapp Cardan Shaft, D.K.W. Crankshaft

CEP OS P B488 - Oil Seal

From £10.55 (£12.66 inc. VAT @ 20%)

Zundapp Gear Lever, Victoria Crankshaft, Puch Gearbox, D.K.W. Crankshaft

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
17.065625 30.2006 7.9375 43/64 10.189 5/16 M/R(4B)
Fits Makes:
Zundapp Gear Lever, Victoria Crankshaft, Puch Gearbox, D.K.W. Crankshaft

CEP OS P B499 - Oil Seal

From £8.44 (£10.13 inc. VAT @ 20%)

Renault Gearshift

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
13.096875 30.2006 7.14375 33/64 10.189 9/32 M/R(4B)
Fits Makes:
Renault Gearshift

CEP OS P B500 - Oil Seal

From £8.44 (£10.13 inc. VAT @ 20%)

Lambretta Transmission, Ifa Crankshaft, Allgaier Steering

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
27 41 10 10.062992 10.614173 0.393701 M/R(4B)
Fits Makes:
Lambretta Transmission, Ifa Crankshaft, Allgaier Steering

CEP OS P B508 - Oil Seal

From £16.88 (£20.26 inc. VAT @ 20%)

Triumph Rear Hub

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
25.1 38.2 14.25 0.988189 10.503937 0.561024 M/F/L(DFL)
Fits Makes:
Triumph Rear Hub
Product Image
Photograph for illustrative purposes only - not actual product shown

CEP OS P B513 - Oil Seal

From £10.55 (£12.66 inc. VAT @ 20%)

Oil Seal

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
18.9 41.3 8 0.744094 10.625984 0.314961
Product Image
Photograph for illustrative purposes only - not actual product shown

CEP OS P B514 - Oil Seal

From £10.55 (£12.66 inc. VAT @ 20%)

Oil Seal

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
26 44.5 11 10.023622 10.751969 0.433071
Product Image
Photograph for illustrative purposes only - not actual product shown

CEP OS P B518 - Oil Seal

From £10.55 (£12.66 inc. VAT @ 20%)

Oil Seal

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
7.9375 19.1262 7.9375 5/16 0.753 5/16
Product Image
Photograph for illustrative purposes only - not actual product shown

CEP OS P B521 - Oil Seal

From £10.55 (£12.66 inc. VAT @ 20%)

Oil Seal

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
34.925 49.5554 13.096875 1 3/8 10.951 33/64
Product Image
Photograph for illustrative purposes only - not actual product shown

CEP OS P B525 - Oil Seal

From £9.49 (£11.39 inc. VAT @ 20%)

Oil Seal

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
15.875 33.528 4.7625 5/8 10.32 3/16
Product Image
Photograph for illustrative purposes only - not actual product shown

CEP OS P B528 - Oil Seal

From £8.44 (£10.13 inc. VAT @ 20%)

Oil Seal

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
24.3 41.1 9.8 0.956693 10.61811 0.385827
Product Image
Photograph for illustrative purposes only - not actual product shown

CEP OS P B529 - Oil Seal

From £8.44 (£10.13 inc. VAT @ 20%)

Oil Seal

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
28.575 41.4782 6.35 1 1/8 10.633 1/4
Product Image
Photograph for illustrative purposes only - not actual product shown

CEP OS P B575 - Oil Seal

From £8.44 (£10.13 inc. VAT @ 20%)

Oil Seal

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
25 42 6 0.984252 10.653543 0.23622
Product Image
Photograph for illustrative purposes only - not actual product shown

CEP OS P C1007 - Oil Seal

From £10.55 (£12.66 inc. VAT @ 20%)

Oil Seal

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
54.76875 70.231 9.921875 2 5/32 20.765 25/64

CEP OS P C105 - Oil Seal

From £12.66 (£15.19 inc. VAT @ 20%)

Wilson El. Pinion, Tomlinson Front Hub, Thornycroft Pinion, Morgan Gearbox, Leyland Timing Chain, Ford Thames Steering, ERF Steering, Crossley Fan, Albion Timing Chain

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
31.7 50.9 12.7 10.248031 20.003937 1/2 M/L(Std)
Fits Makes:
Wilson El. Pinion, Tomlinson Front Hub, Thornycroft Pinion, Morgan Gearbox, Leyland Timing Chain, Ford Thames Steering, ERF Steering, Crossley Fan, Albion Timing Chain
Product Image
Photograph for illustrative purposes only - not actual product shown

CEP OS P C110 - Oil Seal

From £12.66 (£15.19 inc. VAT @ 20%)

Oil Seal

Comparable to other manufacturer part numbers - C613

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
31.7 52.48 12.7 10.248031 20.066142 1/2

CEP OS P C112 - Oil Seal

From £10.55 (£12.66 inc. VAT @ 20%)

Standard Pinion

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
33.3 52.48 12.7 10.311024 20.066142 1/2 M/L(Std)
Fits Makes:
Standard Pinion

CEP OS P C113 - Oil Seal

From £10.55 (£12.66 inc. VAT @ 20%)

Triumph Gearbox, Standard Gearbox, Lanchester Gearbox, Jaguar Various, Austin Pinion

Metric (mm) Imperial (inches)
Inner Dia. Outer Dia. Width Inner Dia. Outer Dia. Width Material
34.9 52.48 12.7 10.374016 20.066142 1/2 M/R(Std)
Fits Makes:
Triumph Gearbox, Standard Gearbox, Lanchester Gearbox, Jaguar Various, Austin Pinion
