Pistons

Search in Pistons

Search by one or more dimension or specification (1 inch = 25.4mm)

Bore (mm)

Piston Height (mm)

Compression Height (mm)

Tolerance

±

Tolerance

±

Tolerance

±

Gudgeon Pin Dia. (mm)'

Tolerance

±

We supply Pistons for all makes of vintage and classic vehicle from AEC and Allis-Chalmers to Volkswagen and Volvo. To assist with part identification, we have compiled application data for a selection of the most popular makes and model of vehicle. Please search below by make, then model.

Make

Model & Year

If your make or mode of vehicle is not covered by our search facility, please email with details of your requirement (Make, Capacity, Bore Size, Model and Year) and we will provide links to the correct parts where available.

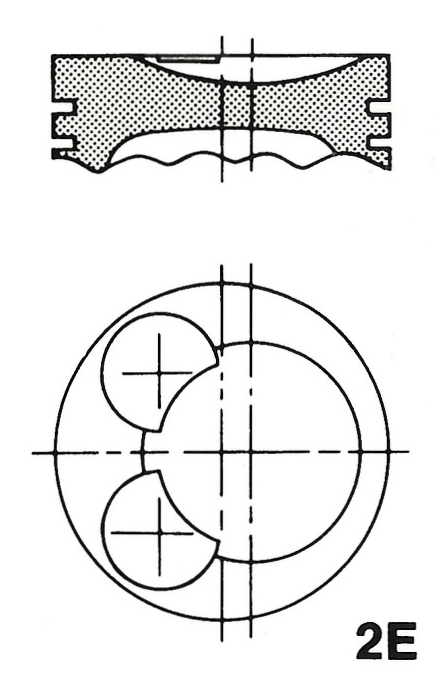

Piston Crown Type

Piston Crown Type

CEP P H 350254/STD-1 - Piston

From £70.70 (£84.84 inc. VAT @ 20%)

Petter

Comparable to other manufacturer part numbers - CEP P H 350254

CEP - Pistons and Rings - Pistons

Metric (mm)				English (Inches)
Bore	Piston Height	Compression Height	Gudgeon Pin Dia.	Bore	Piston Height	Compression Height	Gudgeon Pin Dia.
87.3125	105.9942	63.6016	30	3 7/16	4.173	2.504	1.181102

Wishlist Details & Ordering

Piston Crown Type

Piston Crown Type

CEP P H 350255/STD-1 - Piston

From £60.60 (£72.72 inc. VAT @ 20%)

I.H.C.

Comparable to other manufacturer part numbers - CEP P H 350255

CEP - Pistons and Rings - Pistons

Metric (mm)				English (Inches)
Bore	Piston Height	Compression Height	Gudgeon Pin Dia.	Bore	Piston Height	Compression Height	Gudgeon Pin Dia.
93.6625	96.0374	51.7779	28.575	3 11/16	3.781	2.0385	1 1/8

Wishlist Details & Ordering

Photograph for illustrative purposes only - not actual product shown

CEP p h 350364/0.15 - Piston

From £134.21 (£161.05 inc. VAT @ 20%)

CEP - Pistons and Rings - Pistons

Metric (mm)				English (Inches)
Bore	Piston Height	Compression Height	Gudgeon Pin Dia.	Bore	Piston Height	Compression Height	Gudgeon Pin Dia.
				0	0	0	0

Wishlist Details & Ordering

Photograph for illustrative purposes only - not actual product shown

CEP p h 350364/0.35 - Piston

From £134.21 (£161.05 inc. VAT @ 20%)

CEP - Pistons and Rings - Pistons

Metric (mm)				English (Inches)
Bore	Piston Height	Compression Height	Gudgeon Pin Dia.	Bore	Piston Height	Compression Height	Gudgeon Pin Dia.

Wishlist Details & Ordering

Piston Crown Type

Piston Crown Type

CEP P H 350364/STD-1 - piston

From £134.21 (£161.05 inc. VAT @ 20%)

ford dover 90/130

Comparable to other manufacturer part numbers - CEP P H 350364

CEP - Pistons and Rings - Pistons

Metric (mm)				English (Inches)
Bore	Piston Height	Compression Height	Gudgeon Pin Dia.	Bore	Piston Height	Compression Height	Gudgeon Pin Dia.
107.188	119.888	71.247	36.5125	4.22	4.72	2.805	1 7/16

Wishlist Details & Ordering

Photograph for illustrative purposes only - not actual product shown

CEP P H 350391 - Piston Set

This part is interchangeable with:CEP P H 350391/STD-1

From £286.76 (£344.11 inc. VAT @ 20%)

Ford 1.6 Diesel D16 1608cc

Comparable to other manufacturer part numbers - CEP P H 350391/STD-1

CEP - Pistons and Rings - Pistons

Metric (mm)				English (Inches)
Bore	Piston Height	Compression Height	Gudgeon Pin Dia.	Bore	Piston Height	Compression Height	Gudgeon Pin Dia.

Wishlist Details & Ordering

Piston Crown Type

Piston Crown Type

CEP P H 360001/STD-4 - Piston

From £222.20 (£266.64 inc. VAT @ 20%)

Fiat

Comparable to other manufacturer part numbers - CEP P H 360001

CEP - Pistons and Rings - Pistons

Metric (mm)				English (Inches)
Bore	Piston Height	Compression Height	Gudgeon Pin Dia.	Bore	Piston Height	Compression Height	Gudgeon Pin Dia.
80	72.3	35.3	22	3.149606	2.846457	1.389764	0.866142

Year From:: 1969

Wishlist Details & Ordering

Piston Crown Type

Piston Crown Type

CEP P H 404112/STD-1 - Piston

From £70.70 (£84.84 inc. VAT @ 20%)

Lister

Comparable to other manufacturer part numbers - CEP P H 404112

CEP - Pistons and Rings - Pistons

Metric (mm)				English (Inches)
Bore	Piston Height	Compression Height	Gudgeon Pin Dia.	Bore	Piston Height	Compression Height	Gudgeon Pin Dia.
80.9625	103.1875	65.0875	26.9875	3 3/16	4 1/16	2 9/16	1 1/16

Wishlist Details & Ordering

Piston Crown Type

Piston Crown Type

CEP P H 408108/STD-1 - Piston

From £70.70 (£84.84 inc. VAT @ 20%)

Perkins

Comparable to other manufacturer part numbers - CEP P H 408108

CEP - Pistons and Rings - Pistons

Metric (mm)				English (Inches)
Bore	Piston Height	Compression Height	Gudgeon Pin Dia.	Bore	Piston Height	Compression Height	Gudgeon Pin Dia.
91.4908	107.696	56.9722	31.75	3.602	4.24	2.243	1 1/4

Wishlist Details & Ordering

Piston Crown Type

Piston Crown Type

CEP P H 4094/STD-6 - Piston

From £333.30 (£399.96 inc. VAT @ 20%)

Lanchester

Comparable to other manufacturer part numbers - CEP P H 4094

CEP - Pistons and Rings - Pistons

Metric (mm)				English (Inches)
Bore	Piston Height	Compression Height	Gudgeon Pin Dia.	Bore	Piston Height	Compression Height	Gudgeon Pin Dia.
69.5	75.25	45	18	2.73622	2.962598	1.771654	0.708661

Year From:: 1932
Year To:: 1935

Wishlist Details & Ordering

Piston Crown Type

Piston Crown Type

CEP P H 412005/STD-2 - Piston

From £404.00 (£484.80 inc. VAT @ 20%)

Leyland

Comparable to other manufacturer part numbers - CEP P H 412005

CEP - Pistons and Rings - Pistons

Metric (mm)				English (Inches)
Bore	Piston Height	Compression Height	Gudgeon Pin Dia.	Bore	Piston Height	Compression Height	Gudgeon Pin Dia.
107.21086	132.9563	82.1563	33.02	4.2209	5.2345	3.2345	1.3

Wishlist Details & Ordering

Piston Crown Type

Piston Crown Type

CEP P H 425910/STD-1 - Piston

From £60.60 (£72.72 inc. VAT @ 20%)

Perkins

Comparable to other manufacturer part numbers - CEP P H 425910

CEP - Pistons and Rings - Pistons

Metric (mm)				English (Inches)
Bore	Piston Height	Compression Height	Gudgeon Pin Dia.	Bore	Piston Height	Compression Height	Gudgeon Pin Dia.
91.4908	109.6264	62.0014	31.75	3.602	4.316	2.441	1 1/4

Wishlist Details & Ordering

Piston Crown Type

Piston Crown Type

CEP P H 428705/STD-1 - Piston

From £60.60 (£72.72 inc. VAT @ 20%)

Ford (British)

Comparable to other manufacturer part numbers - CEP P H 428705

CEP - Pistons and Rings - Pistons

Metric (mm)				English (Inches)
Bore	Piston Height	Compression Height	Gudgeon Pin Dia.	Bore	Piston Height	Compression Height	Gudgeon Pin Dia.
99.9998	118.11	70.993	34.925	3.937	4.65	2.795	1 3/8

Year From:: 1957
Year To:: 1965

Wishlist Details & Ordering

Piston Crown Type

Piston Crown Type

CEP P H 4376/STD-4 - Piston

From £222.20 (£266.64 inc. VAT @ 20%)

Renault

Comparable to other manufacturer part numbers - CEP P H 4376

CEP - Pistons and Rings - Pistons

Metric (mm)				English (Inches)
Bore	Piston Height	Compression Height	Gudgeon Pin Dia.	Bore	Piston Height	Compression Height	Gudgeon Pin Dia.
70	78.5	43.5	18	2.755906	3.090551	1.712598	0.708661

Year From:: 1934
Year To:: 1940

Wishlist Details & Ordering

Piston Crown Type

Piston Crown Type

CEP P H 437802/STD-1 - Piston

From £70.70 (£84.84 inc. VAT @ 20%)

Gardner

Comparable to other manufacturer part numbers - CEP P H 437802

CEP - Pistons and Rings - Pistons

Metric (mm)				English (Inches)
Bore	Piston Height	Compression Height	Gudgeon Pin Dia.	Bore	Piston Height	Compression Height	Gudgeon Pin Dia.
120.65	165.5318	111.5568	46.0375	4 3/4	6.517	4.392	1 13/16

Wishlist Details & Ordering
